Ignition Switch - Disassemble

DISASSEMBLY PROCEDURE

- Tools Required
- J41352 Modular Column Holding Fixture

1. Check the steering column for accident damage. Refer to Steering Column Accident Damage Inspection - Off Vehicle.





2. Install the steering column and J41352 into a vise.

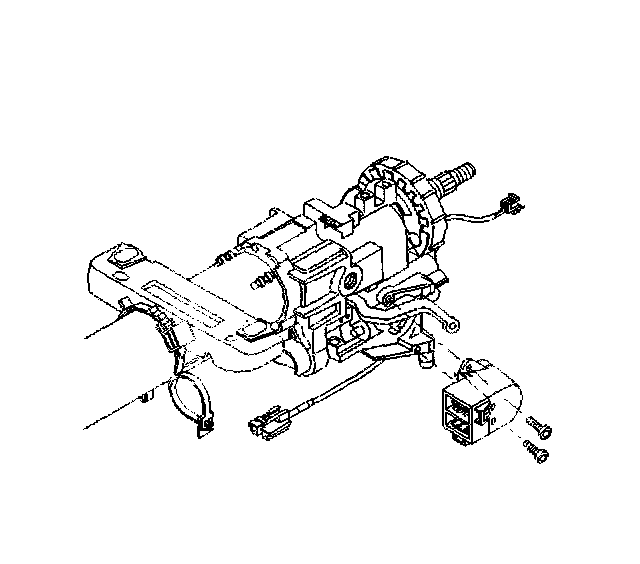

3. Remove 2 tapping screws.
4. Remove the ignition switch assembly.
