Ignition Switch - Assemble

ASSEMBLY PROCEDURE

- Tools Required
- J41352 Modular Column Holding Fixture

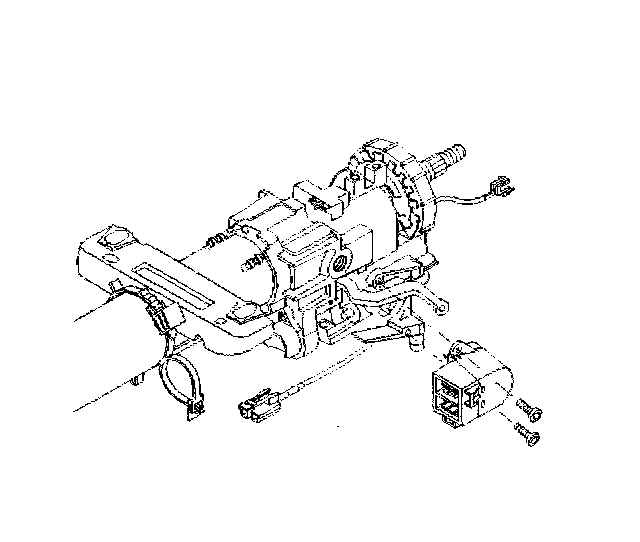

1. Install the ignition switch assembly.

NOTICE: Refer to Fastener Notice in Service Precautions.





2. Install 2 tapping screws.
Tighten the screws to 1.5 Nm (13 inch lbs.).





3. Remove the steering column and J41352 from the vise.
