Fuse Block

Power Distribution Schematics: RR Defog, PWR ACC And Stop/Haz Fuses:

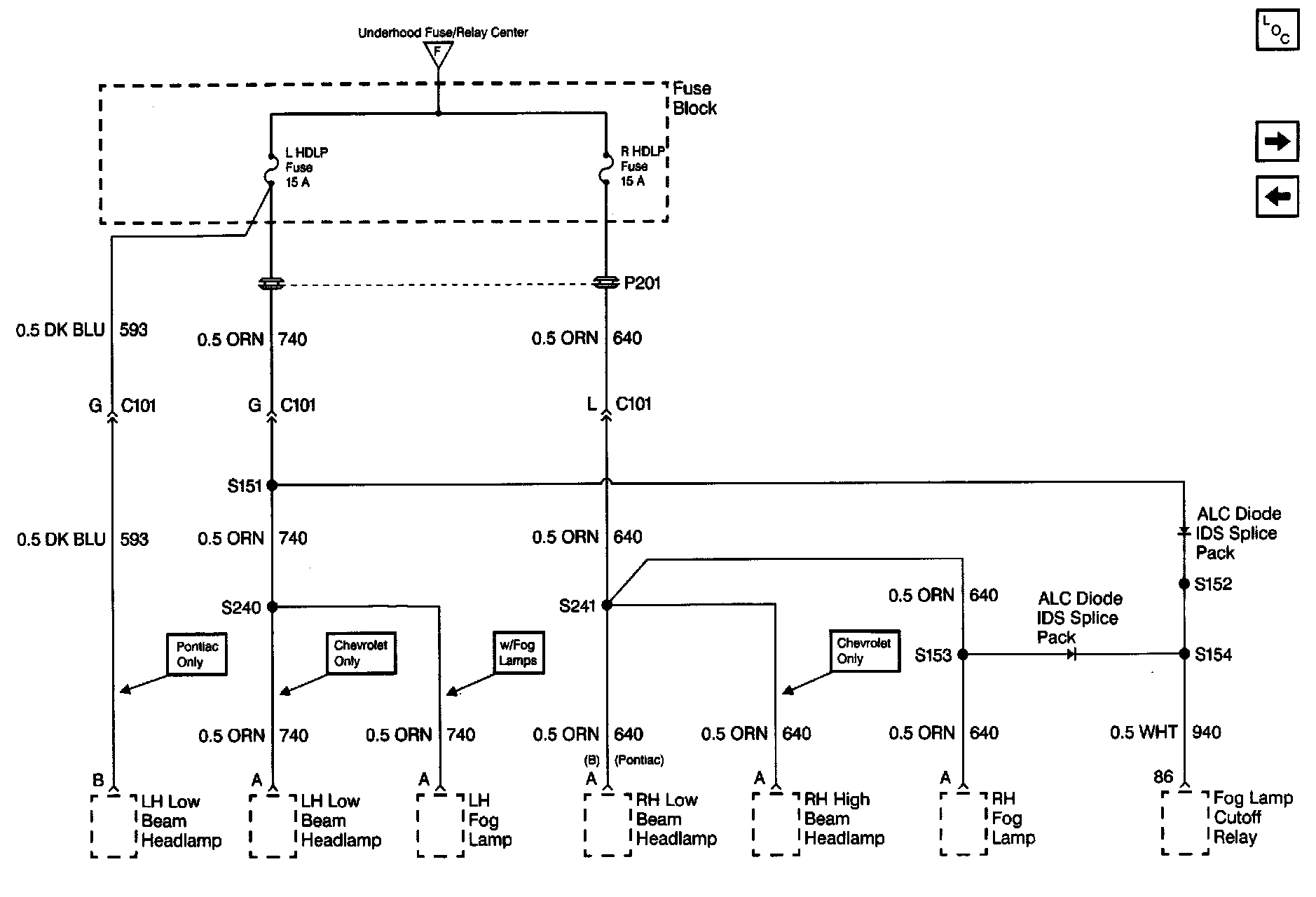

Power Distribution Schematics: L HDLP And R HDLP Fuses:

Power Distribution Schematics: CLS/PCM, F/P Inj, Air Bag And Cruise Fuses:

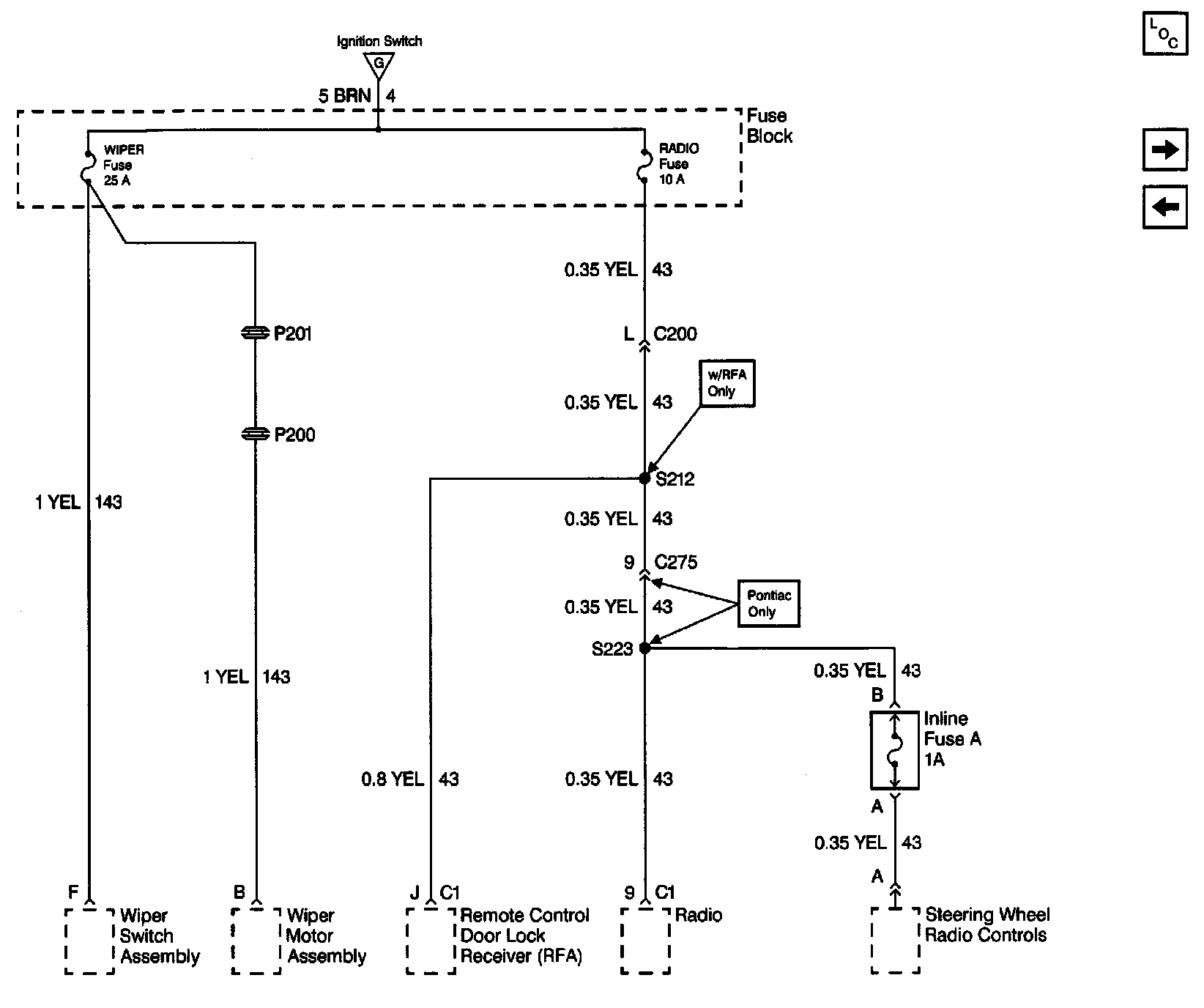

Power Distribution Schematics: Wiper And Radio Fuses:

Power Distribution Schematics: Turn B/U, IGN, PCM/IGN And Alarm Fuses:

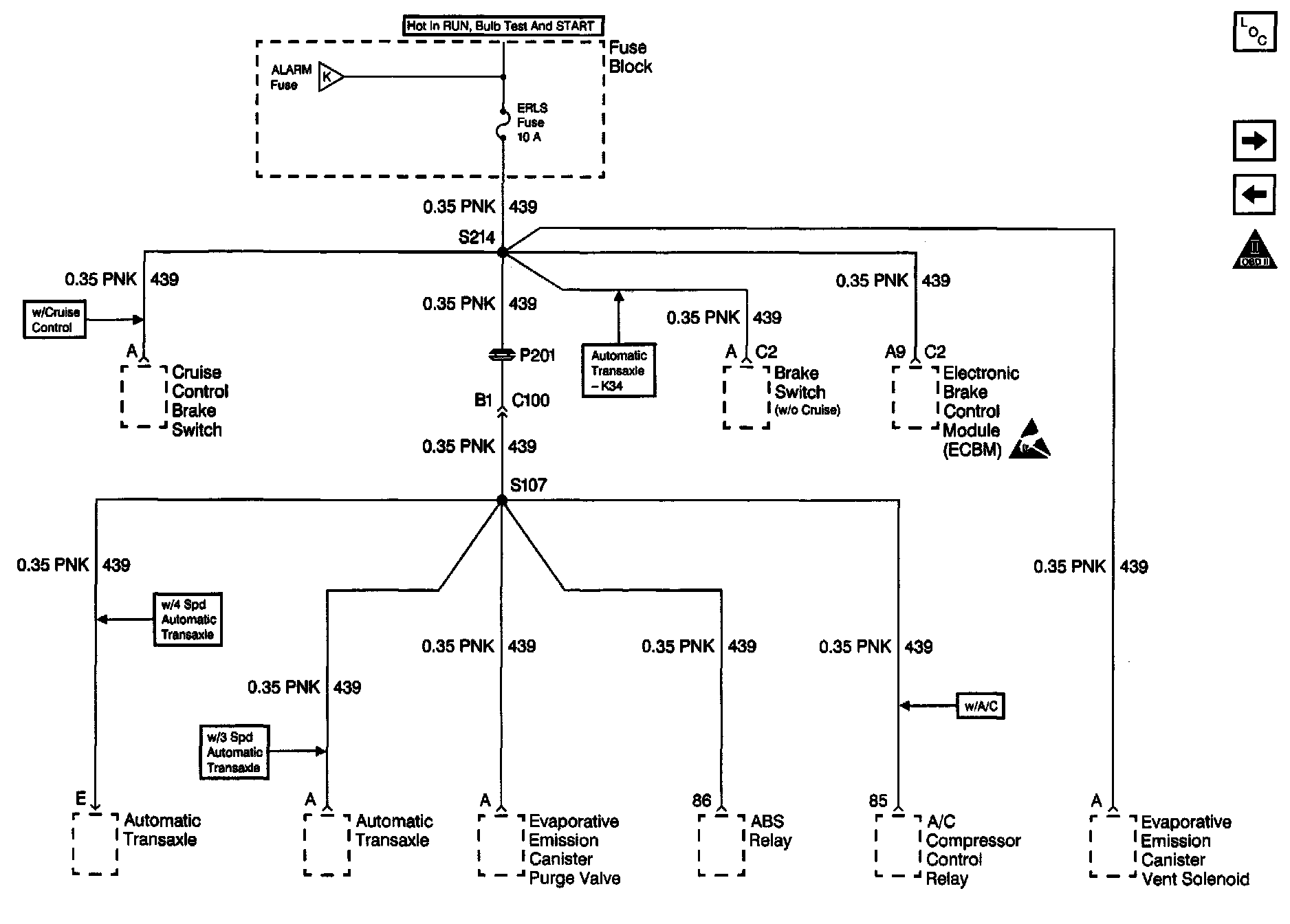

Power Distribution Schematics: ERLS Fuse:

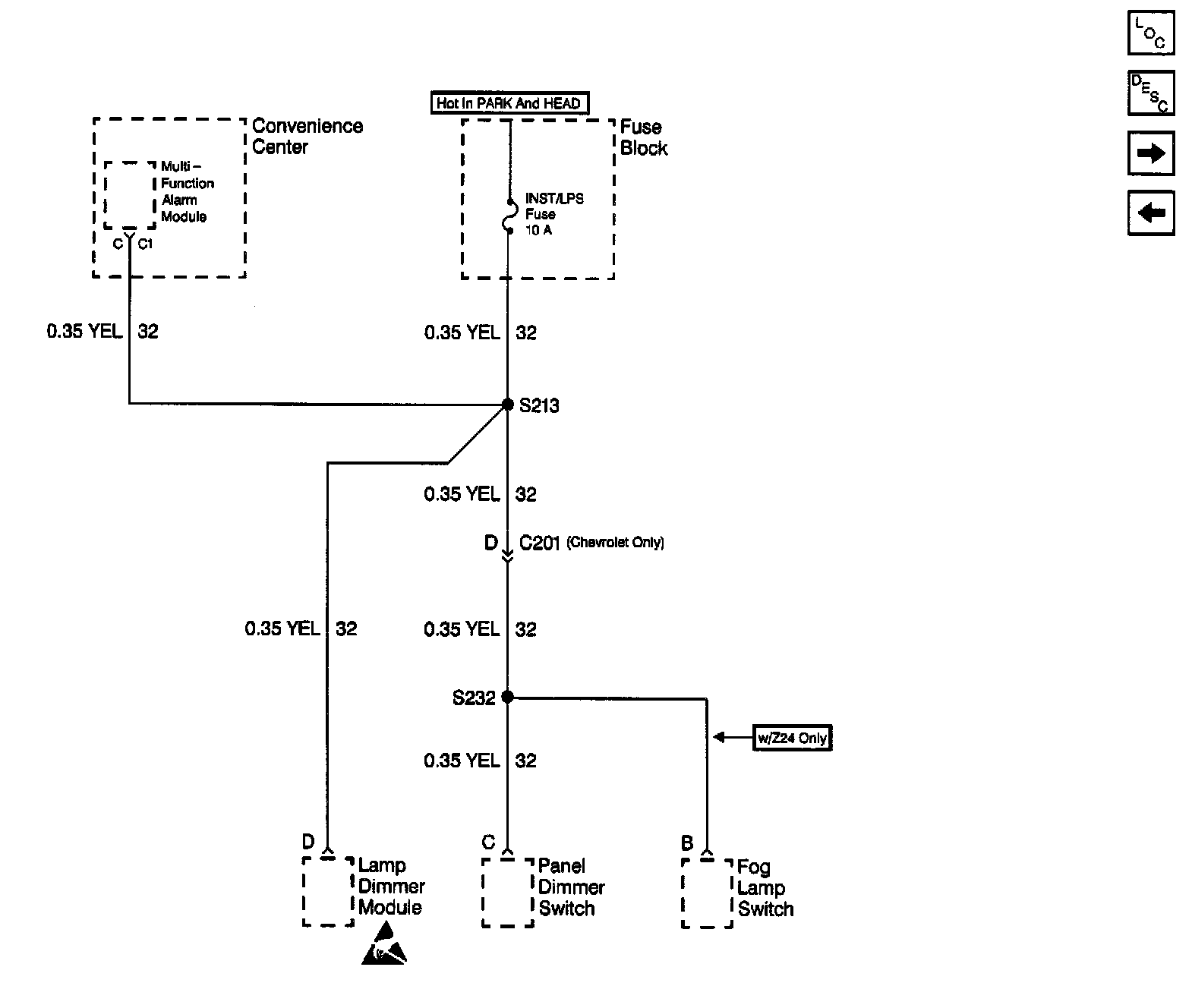

Power Distribution Schematics: INST/LPS Fuse:

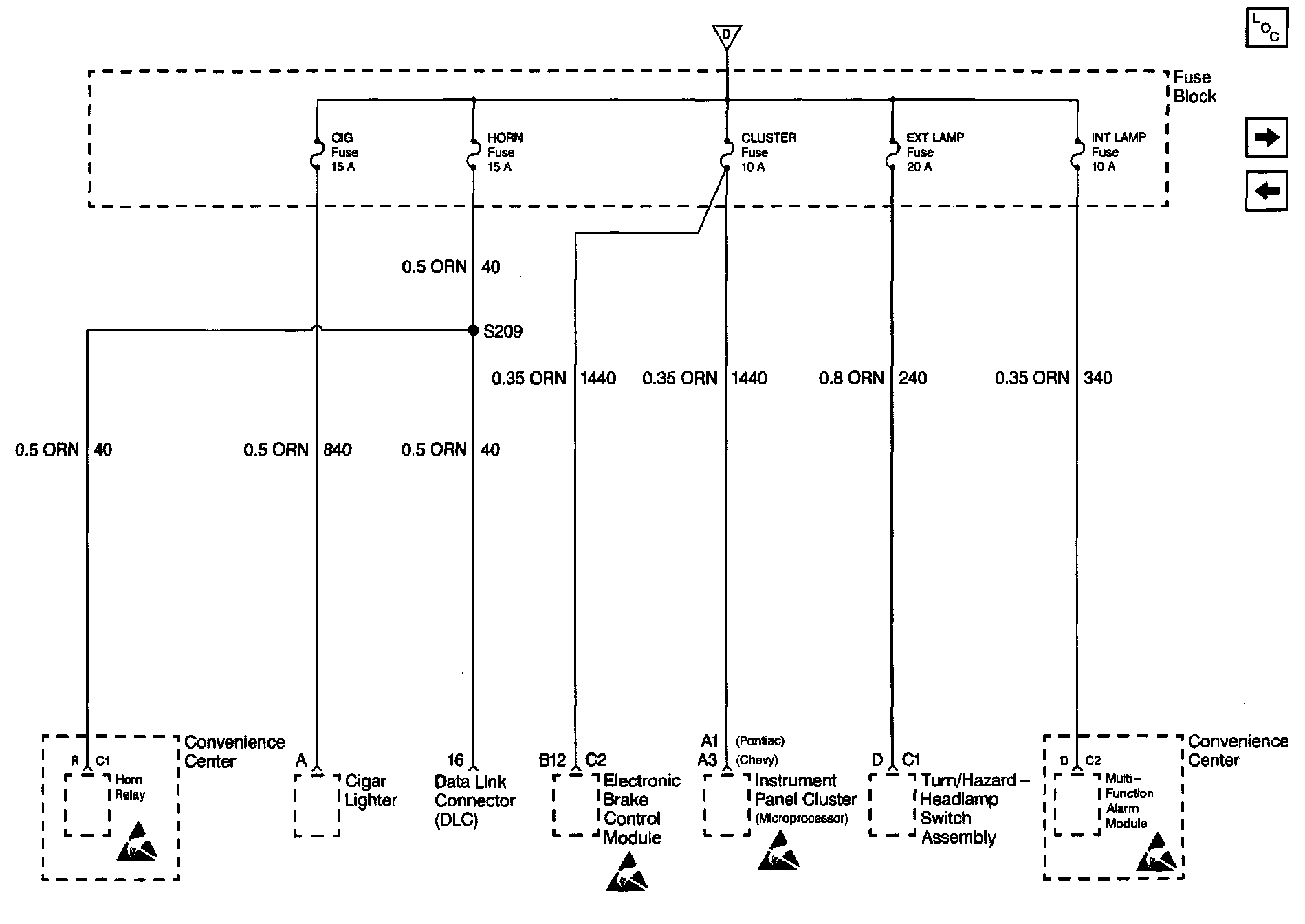

Power Distribution Schematics: CIG, Horn, Cluster, EXT Lamp And INT Lamp Fuses:

Power Distribution Schematics: HVAC, O2 HTR And PWR Window Fuses:
