G304
G304
Ground Distribution Schematics: G304:

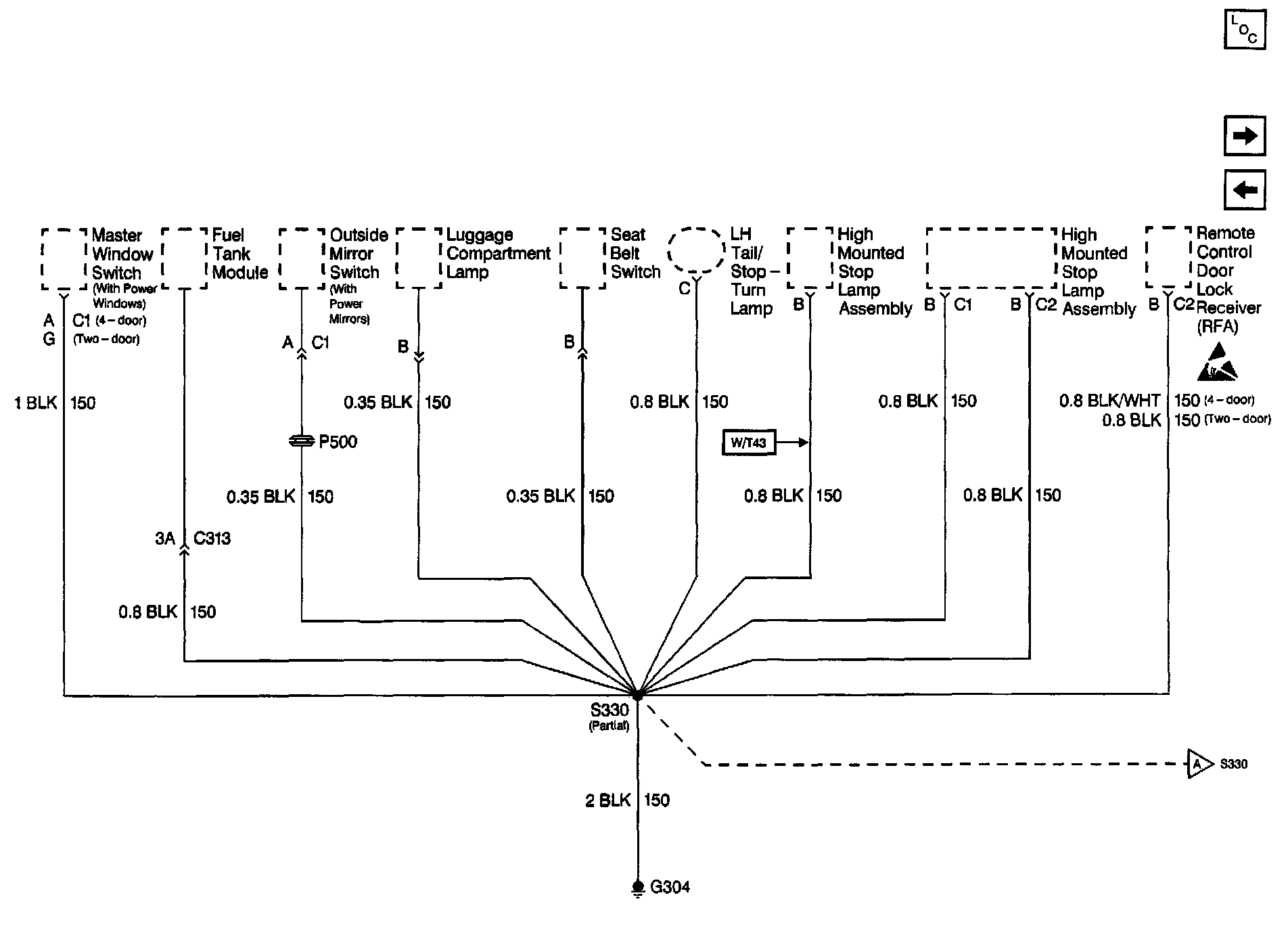

Ground Distribution Schematics: G304 (Partial):

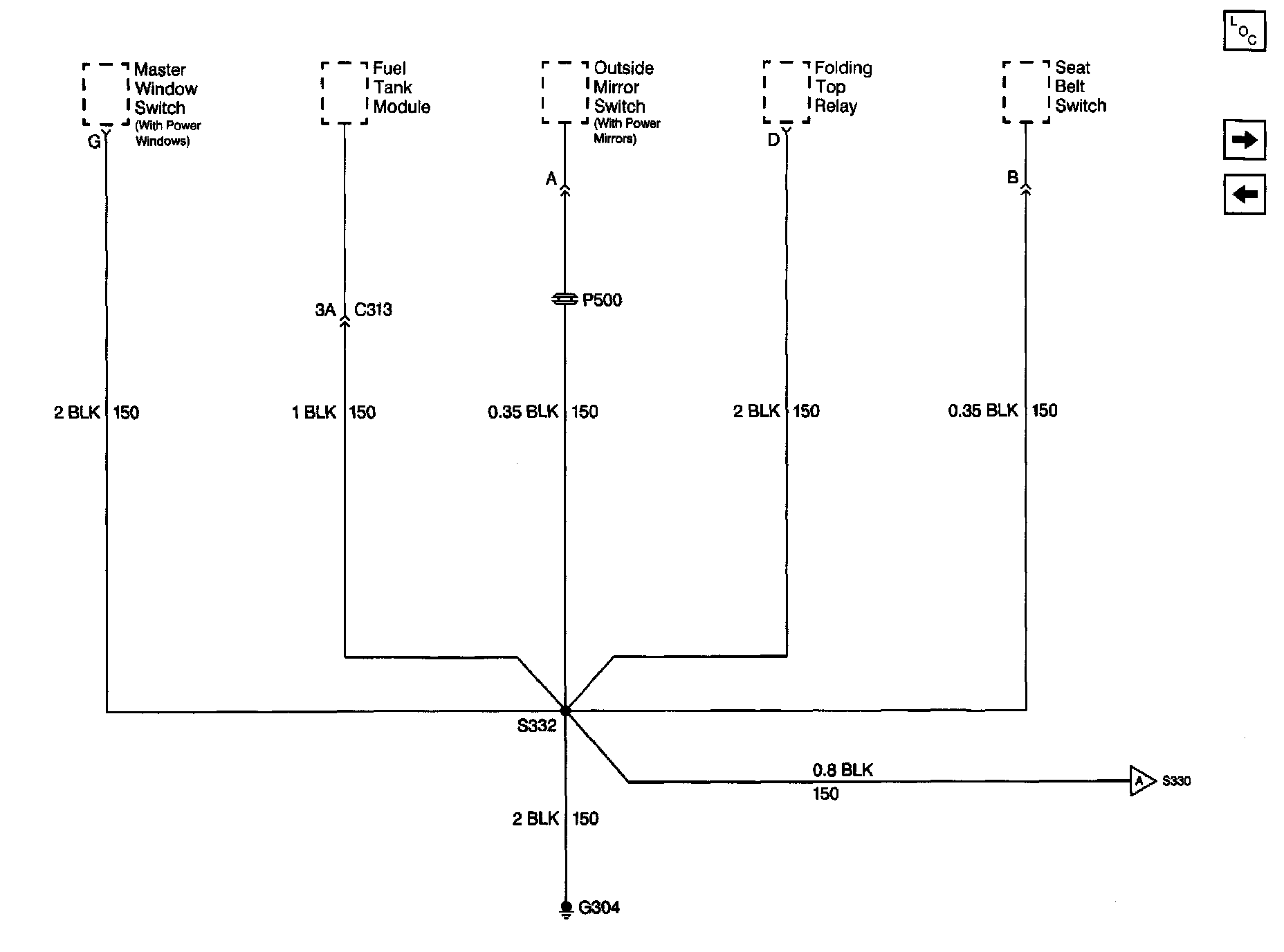

Ground Distribution Schematics: G304 (Folding Top Only):
