Installation Procedure

1. Install the passenger seat buckle side belt.

Notice: Refer to Fastener Notice in Cautions and Notices.

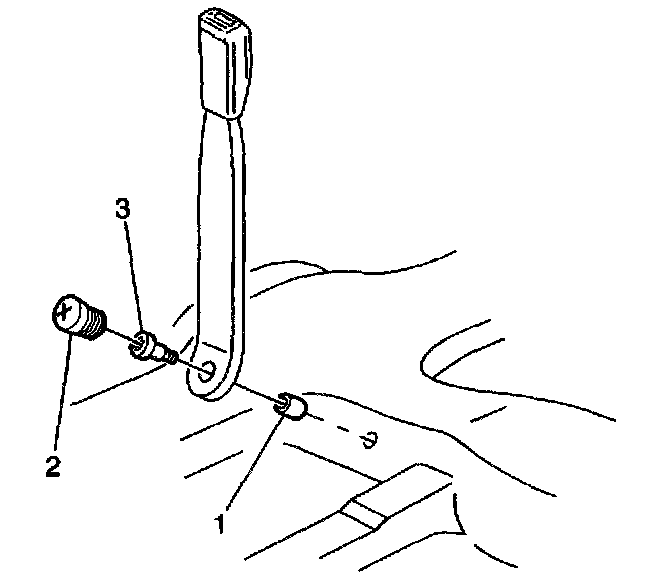

2. Install the passenger seat buckle side belt bolt (3).

Tighten
Tighten the passenger seat side belt bolt to 47 N.m (35 lb ft).

3. Install the front seat belt sleeve plug.
4. Install the passenger seat.
