Modular Fuel Sender Assembly

The modular fuel sender assembly mounts in the top of the fuel tank and is spring loaded to the bottom. The modular fuel sender assembly is designed to:
^ Provide optimum fuel level in the internal fuel reservoir during all fuel tank levels and driving conditions
^ Improve the measuring accuracy of fuel tank level
^ Filters coarse contaminates from the fuel
^ House fuel pump and helps prevent fuel pump noise
^ Include a check valve to inhibit back flow of fuel from the fuel system

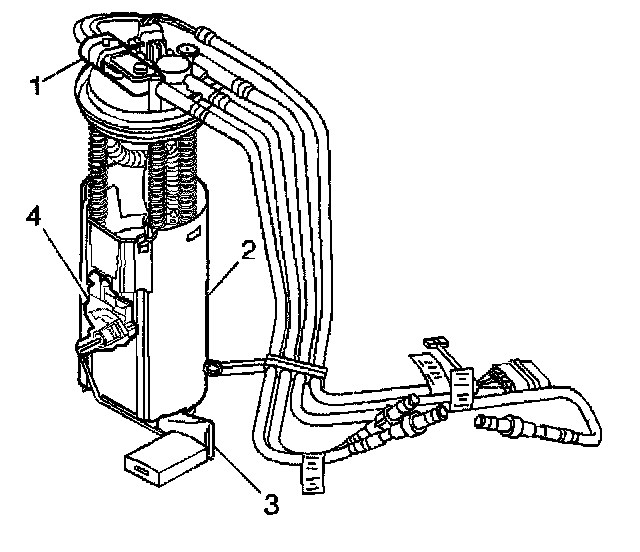

The fuel sender consists of the following serviceable components:
^ A fuel strainer (3)
^ A fuel level sensor (4)
^ A fuel tank pressure sensor (1)
^ Fuel Sender O-ring
