Canister Vent Valve: Service and Repair

EVAP Vent Valve Replacement


REMOVAL PROCEDURE

CAUTION: Refer to Vehicle Lifting Caution in Cautions and Notices.




1. Hoist the vehicle.

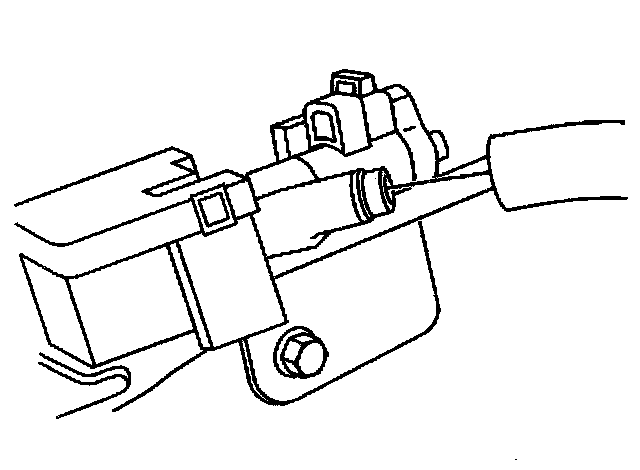

2. Loosen the [1][2]EVAP vent solenoid valve hose clamp and slide the clamp down the hose away from the EVAP vent solenoid valve hose connection.
3. Remove the hose from the [1][2]EVAP vent solenoid valve.

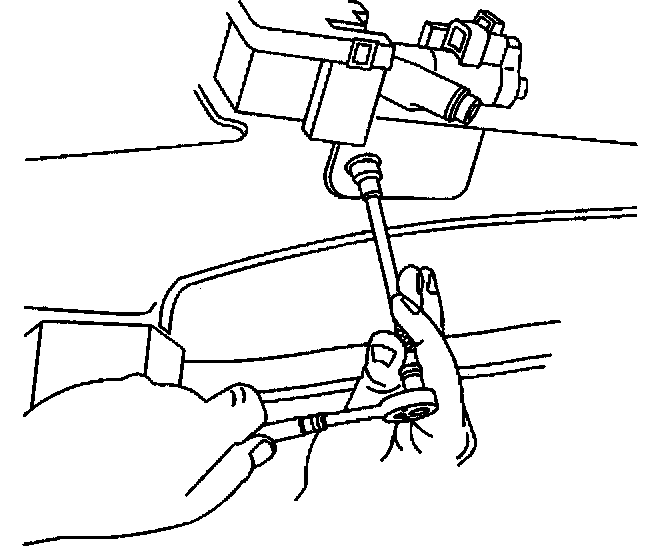

4. Remove the [1][2]EVAP vent solenoid valve mounting bracket attaching bolt.

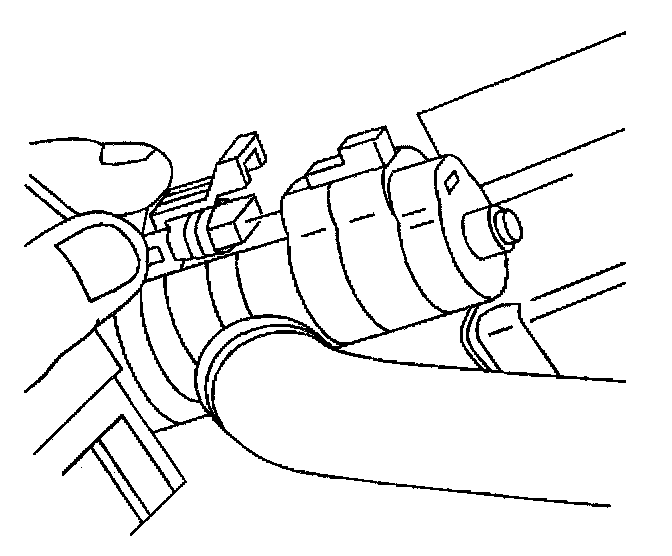

5. Remove the clip from the [1][2]EVAP vent solenoid valve electrical connector.

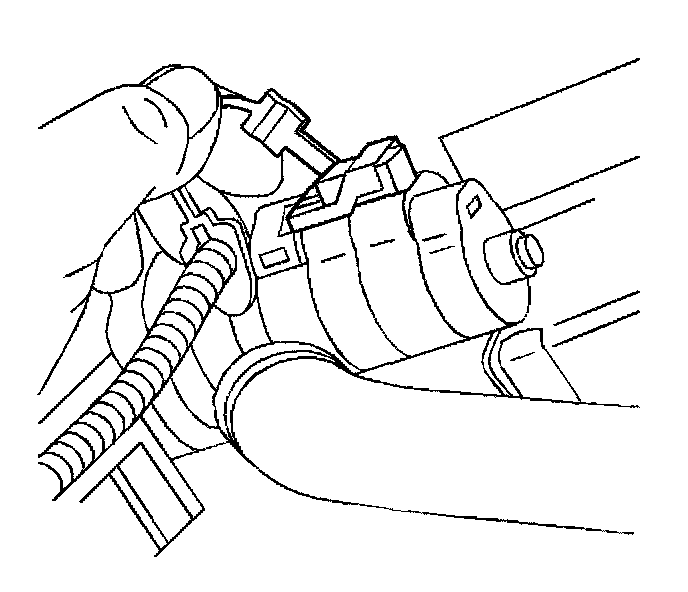

6. Disconnect the [1][2]EVAP vent solenoid valve electrical connector.

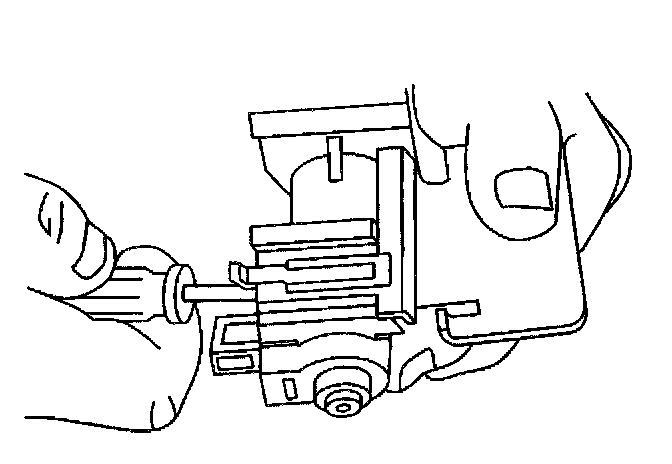

7. Insert a screwdriver between the EVAP vent valve and the mounting bracket to release the lock tab.

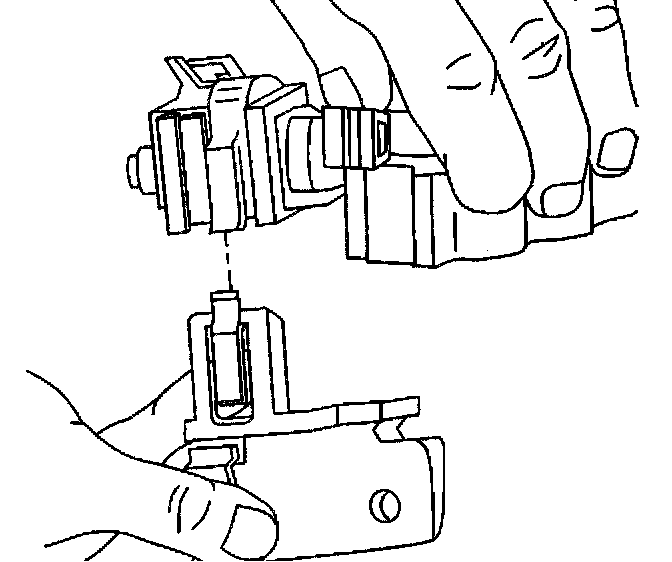

8. Remove the [1][2]EVAP vent solenoid valve from the mounting bracket.

INSTALLATION PROCEDURE




1. Slide the vent solenoid onto the mounting bracket. Making sure that the locking tab locks the [1][2]EVAP vent solenoid valve into place.




2. Connect the [1][2]EVAP vent solenoid valve electrical connector.




3. Install the clip in to the [1][2]EVAP vent solenoid valve electrical connector.

NOTE: Refer to Fastener Notice in Cautions and Notices.




4. Install the [1][2]EVAP vent solenoid valve and mounting bracket attaching bolt.

Tighten
Tighten the [1][2]EVAP vent solenoid valve mounting bracket bolt to 10 N.m (88 lb in).




5. Lubricate the hose ends with lubricant.
6. Install the hose to the [1][2]EVAP vent solenoid valve.
7. Slide the [1][2]EVAP vent solenoid valve hose clamp down on to the hose connection at the EVAP Vent solenoid valve.
8. Lower the vehicle.
