Home
>>
Chevrolet
>>
1999
>>
Cavalier L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Schematics By Component Name
>>
Fuses
>>
PCM
PCM

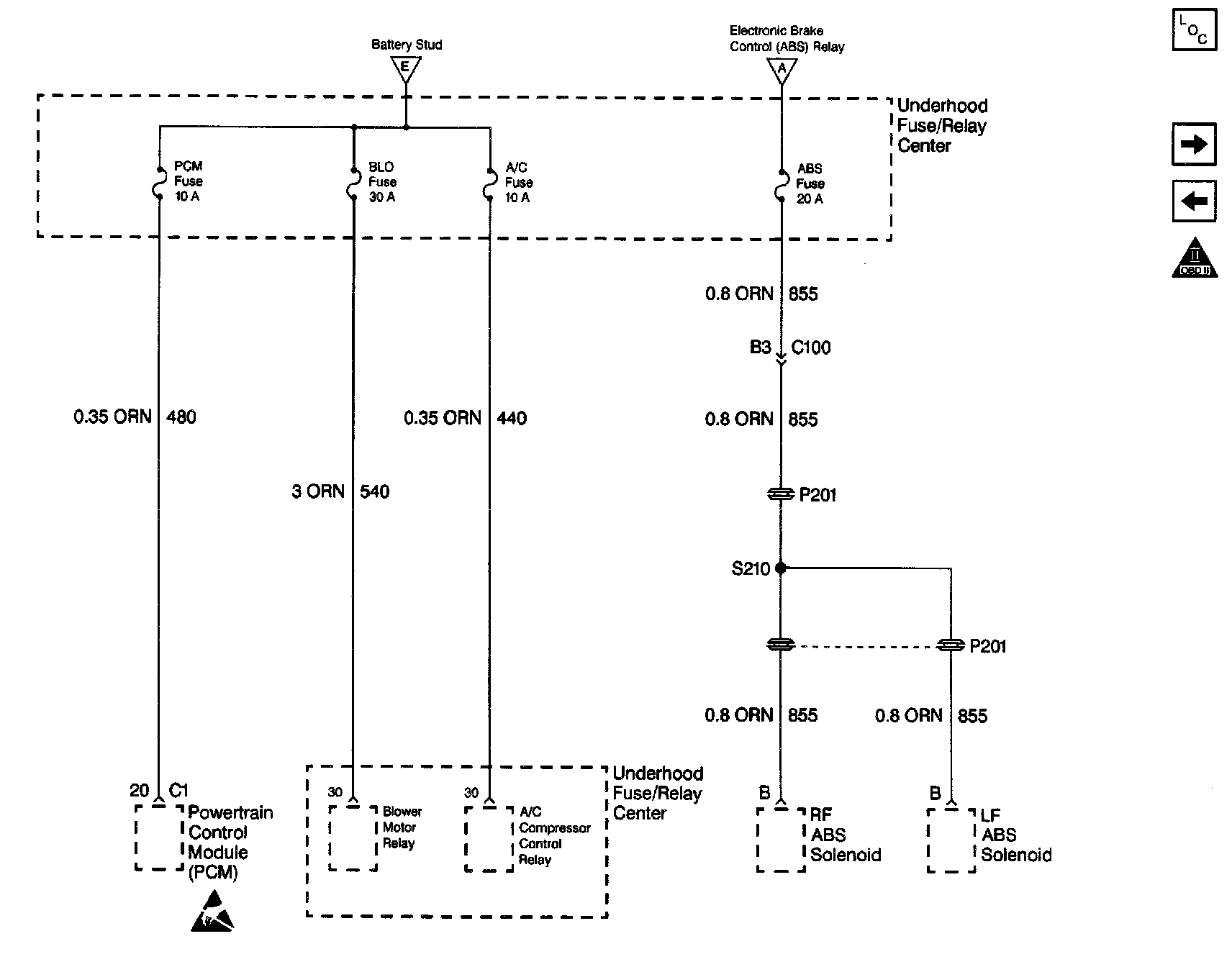

Power Distribution Schematics: PCM, BLO, A/C And ABS Fuses:
