G204

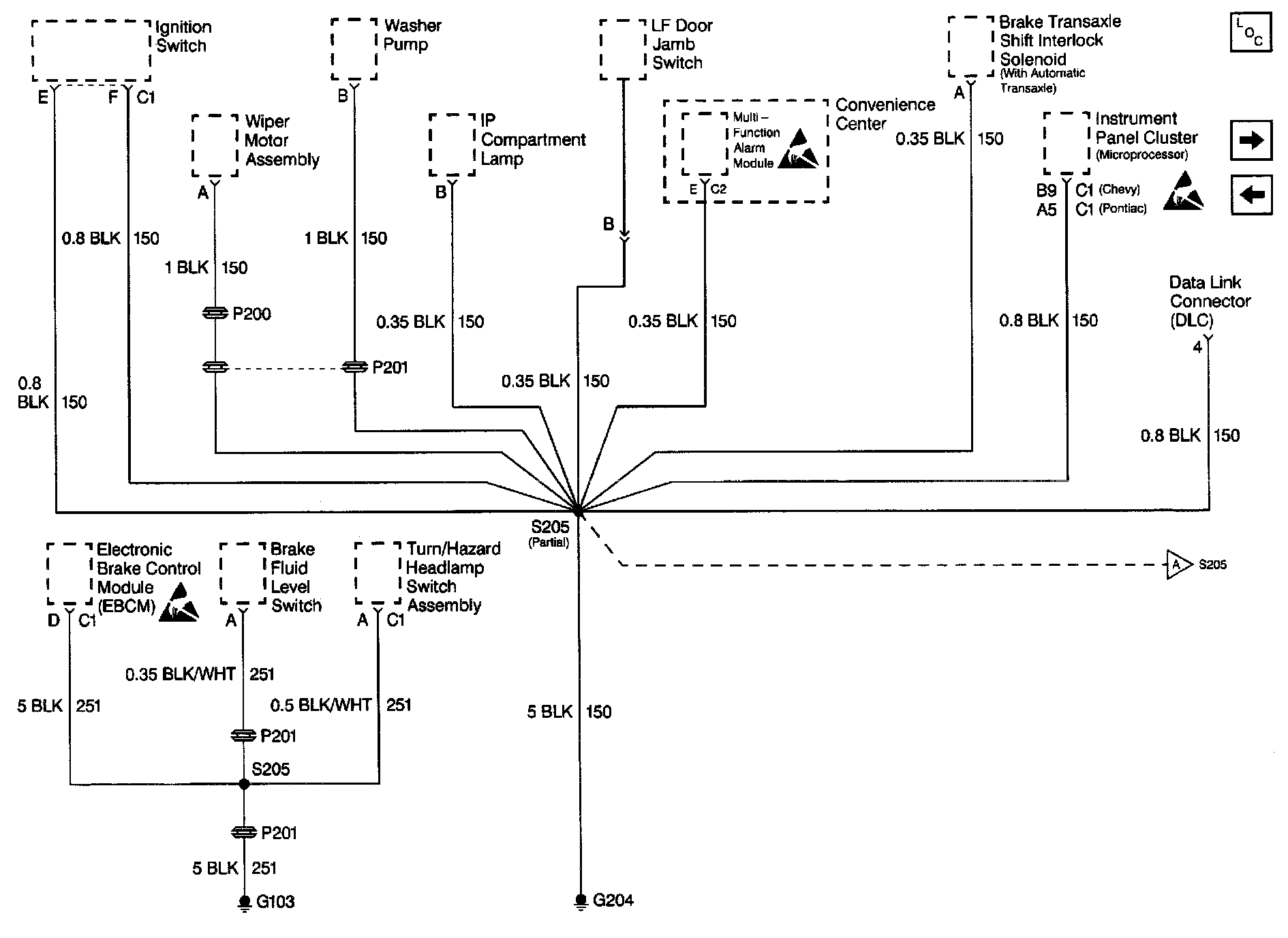

Ground Distribution Schematics: G103 And G204:

Ground Distribution Schematics: G203 And G204:

Ground Distribution Schematics: G204:
