Cooling - Upper Radiator Hose Replacement

File In Section: 06 - Engine/Propulsion System

Bulletin No.: 99-06-02-015

Date: October, 1999

INFORMATION

Subject:
Upper Radiator Hose Replacement

Models:
1998-2000 Chevrolet Cavalier
1998-2000 Pontiac Sunfire
with 2.2L, L-4 Engine (VIN 4 - RPO LN2)

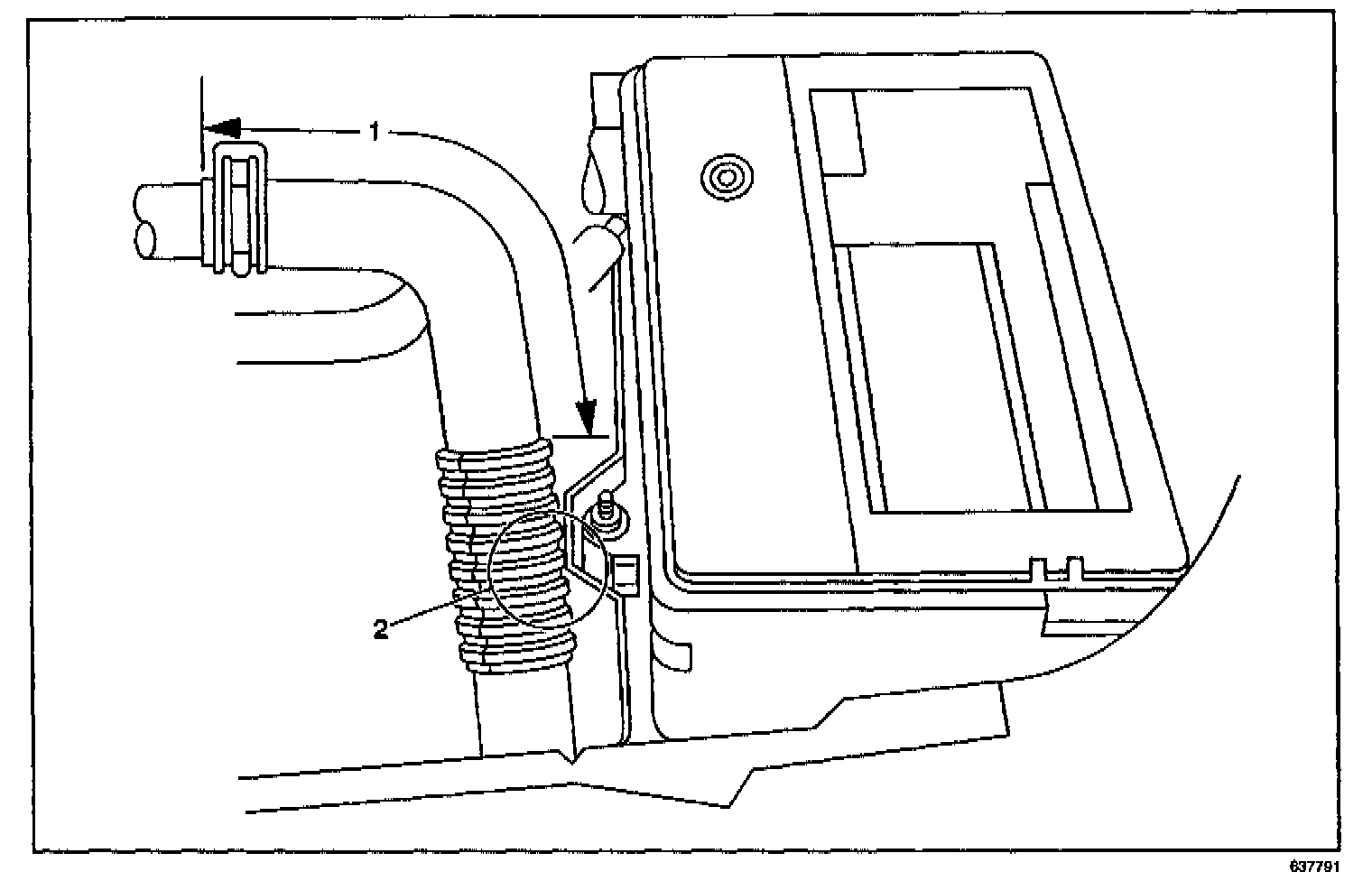

When replacing the upper radiator hose, be sure to install protective conduit, P/N 22618378. Position the conduit to protect the hose from contact (2) with the battery tray (1), 21 mm (8 � in) with the seam of the conduit facing away from the battery tray.

Parts Information

Part Number Description

22618378 Conduit

Parts are currently available from GMSPO.
