Park/Turn Signal Lamp Replacement

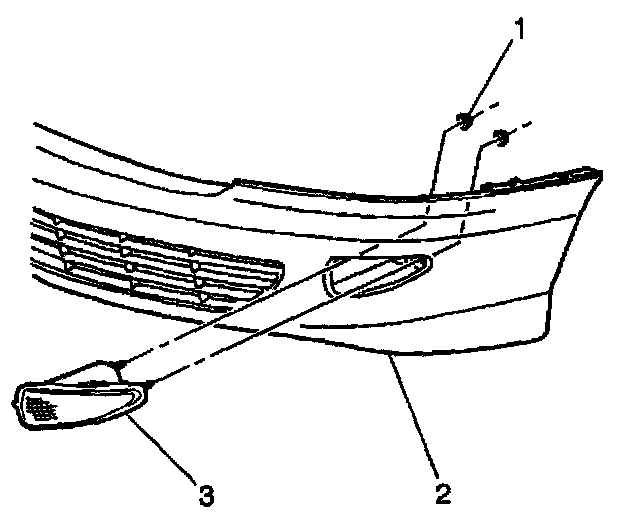

REMOVAL PROCEDURE
1. Remove the front inner wheel housing.
2. Remove the park/[1][2]turn signal lamp retaining nuts.
3. Push the lamp assembly outward.
4. Disconnect the electrical connector.
5. Remove the socket by completing the following steps:
5.1. Depress the locking tab.
5.2. Rotate the socket (3) counter-clockwise.
6. Remove the bulb from the socket (3).

INSTALLATION PROCEDURE
1. Install the bulb to the socket (3).
2. Install the socket (3) into the park/[1][2]turn signal lamp assembly.
Turn the socket (3) counterclockwise.
3. Connect the electrical connector.
4. Install the park/[1][2]turn signal lamp.

NOTE: Refer to Fastener Notice in Cautions and Notices.

5. Install the park/[1][2]turn signal lamp retaining screws.

Tighten
Tighten the screws to 2 N.m (18 lb in).

6. Install the front inner wheel housing.
