Side Marker Lamp Replacement

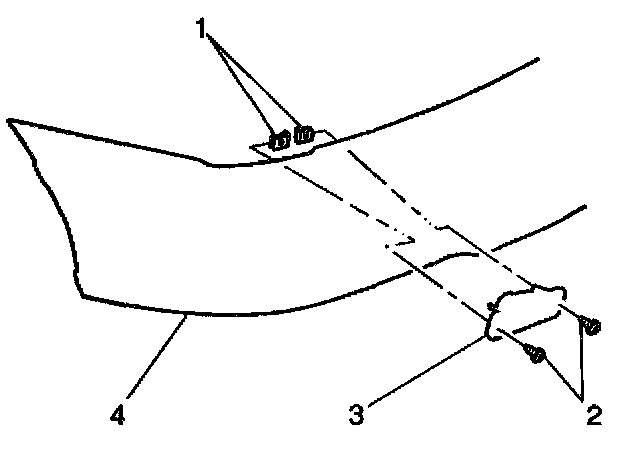

REMOVAL PROCEDURE
1. Remove the screw (2).
2. Remove the lamp housing (3).
3. Remove the rear side marker lamp bulb from the rear side marker lamp (3).

INSTALLATION PROCEDURE
1. Install the rear side marker lamp bulb to the socket.
2. Install the lamp housing (3).

NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Install the screw (2).

Tighten
Tighten the screw 2 N.m (18 lb in).
