Turn, Hazard, Headlamp Switch Assembly
Turn, Hazard, Headlamp Switch Assembly

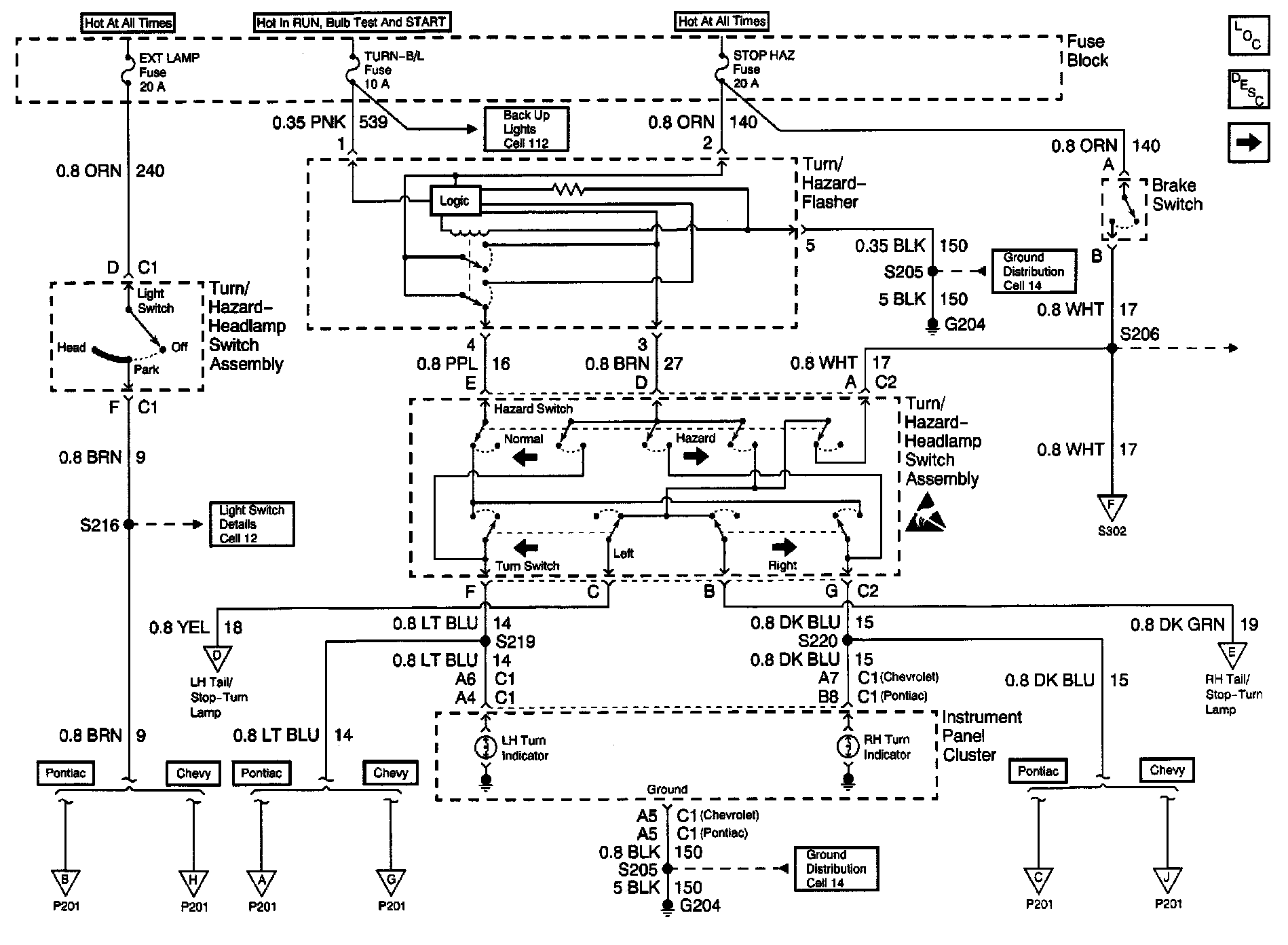

Exterior Lights Schematics: Turn, Hazard, Headlamp Switch Assembly:
