Air Outlet Replacement - Rear Floor

REMOVAL PROCEDURE

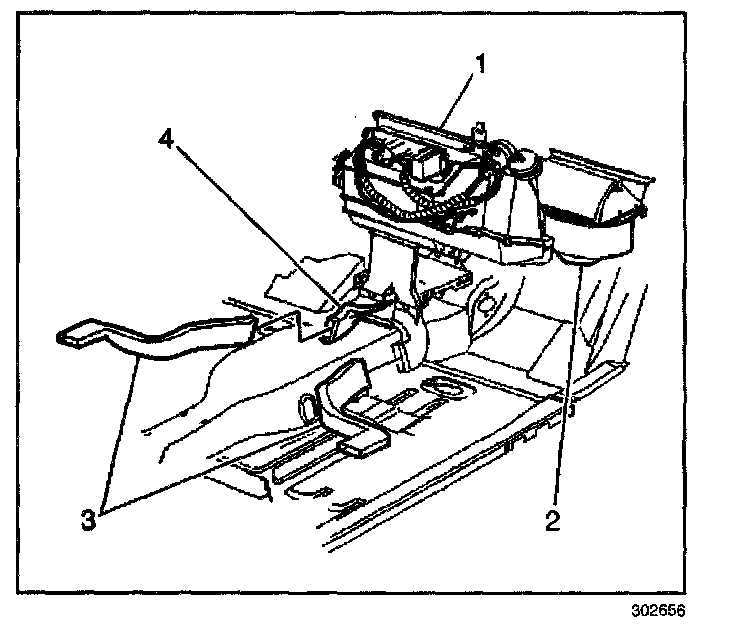

The rear floor heat duct is located under the console and floor carpeting.
1. Remove the console.
2. Partially remove the floor carpeting to the rear of the front seat. Refer to Interior Trim.
3. Remove the rear floor duct (3).

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.

1. Install the rear floor duct (3).

Tighten
Tighten the screw to 2 N.m (18 lb in).

2. Install the floor carpeting.
3. Install the console.
