Temperature Actuator Replacement

REMOVAL PROCEDURE
1. Remove the instrument panel compartment.
2. Disconnect the harness connector.

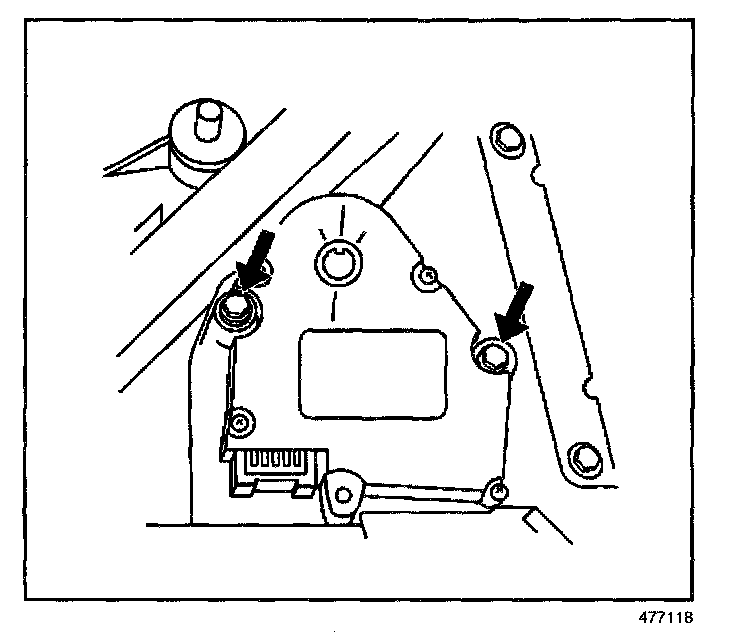

3. Remove the two screws and the actuator.

INSTALLATION PROCEDURE
1. Position the actuator and install the screws.
2. Connect the harness connector.
3. Install the instrument panel compartment.
