Exhaust Manifold Pipe Replacement

REMOVAL PROCEDURE

Notice: Do not over-flex or damage the flex decoupler joint when moving the flex decoupler joint from the normal mounting position. The flex decoupler joint will flex a maximum of six° which is equivalent to the pipes connected at the joint which move 1 inch for each foot length of pipe. A three foot pipe would move a maximum of three inches.





1. Raise the vehicle. Refer to Vehicle Lift Points.
2. Support the three way catalytic converter.

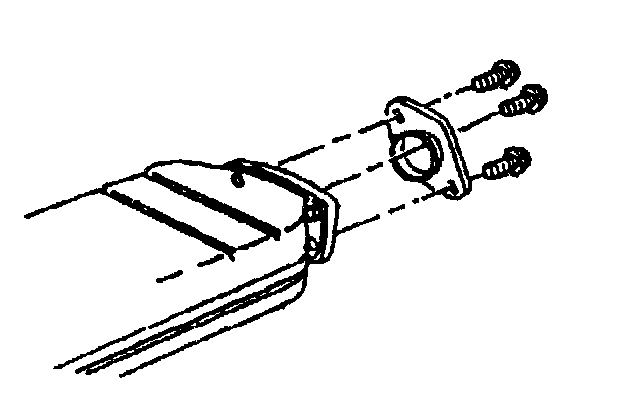

3. Remove the exhaust manifold pipe assembly from the three way catalytic converter.

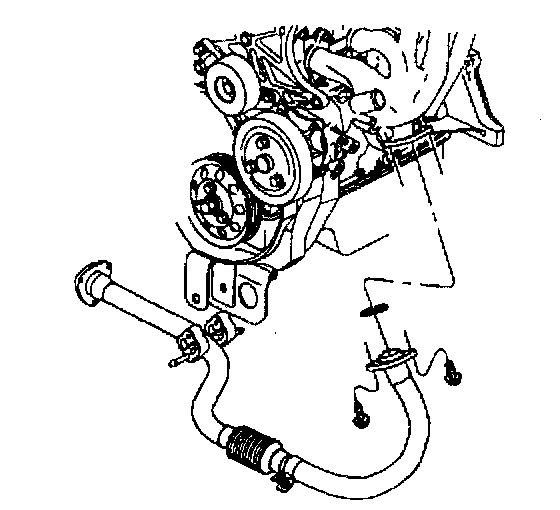

4. Remove the exhaust manifold pipe assembly from the exhaust manifold.
5. Remove the exhaust manifold seal and the three way catalytic converter seal.
6. Clean the flange surfaces.


INSTALLATION PROCEDURE





1. Install the exhaust manifold seal and the three way catalytic converter seal.
2. Install the exhaust manifold pipe assembly to the exhaust manifold.





3. Install the exhaust manifold pipe assembly to the three way catalytic converter.
4. Lower the vehicle.
