Home
>>
Chevrolet
>>
1999
>>
Cavalier L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
3T40 Automatic Transaxle
>>

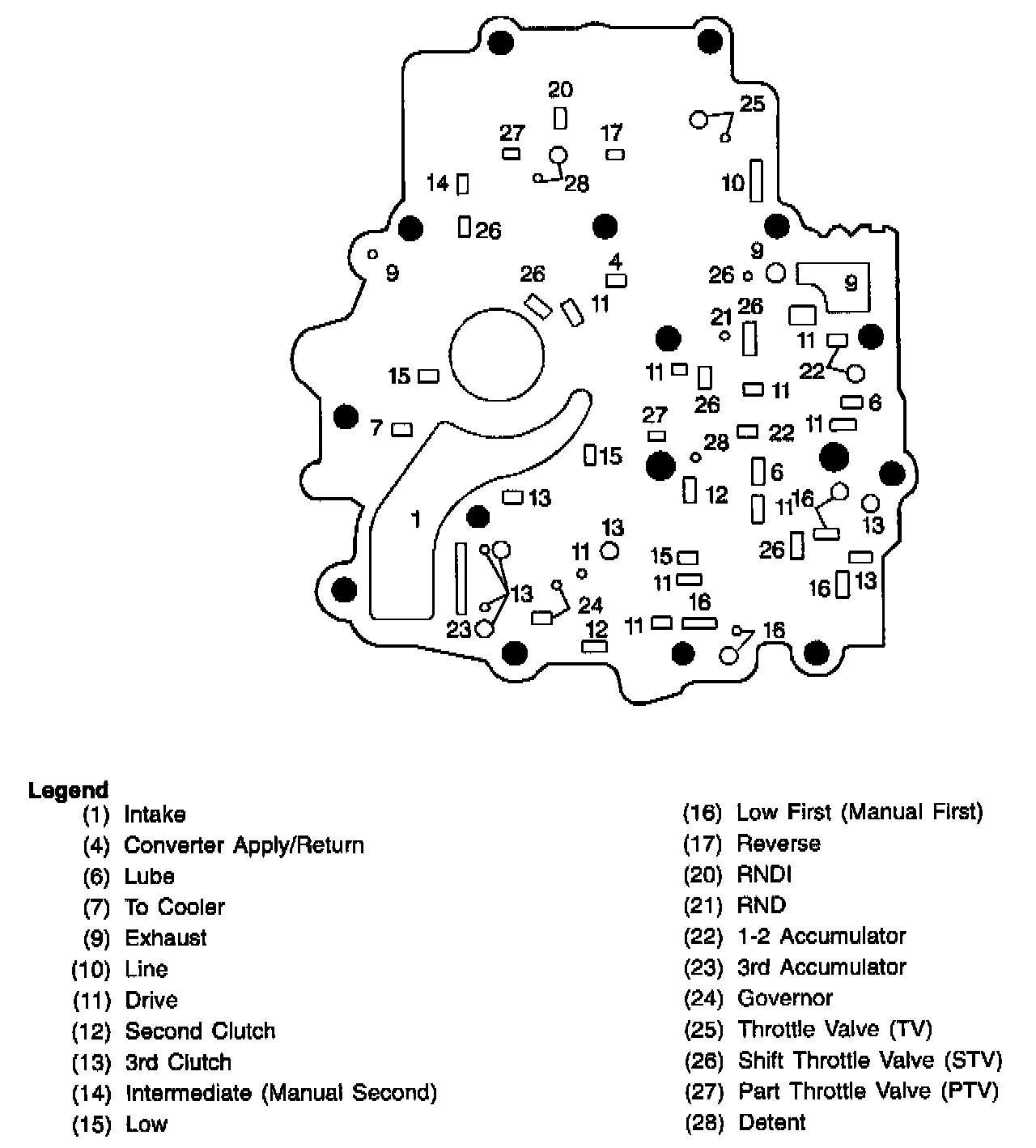

Typical Control Valve Body Spacer Plate Fluid Passages
Typical Control Valve Body Spacer Plate Fluid Passages
