Home >> Chevrolet >> 1999 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lights >> Illuminated Entry

Illuminated Entry

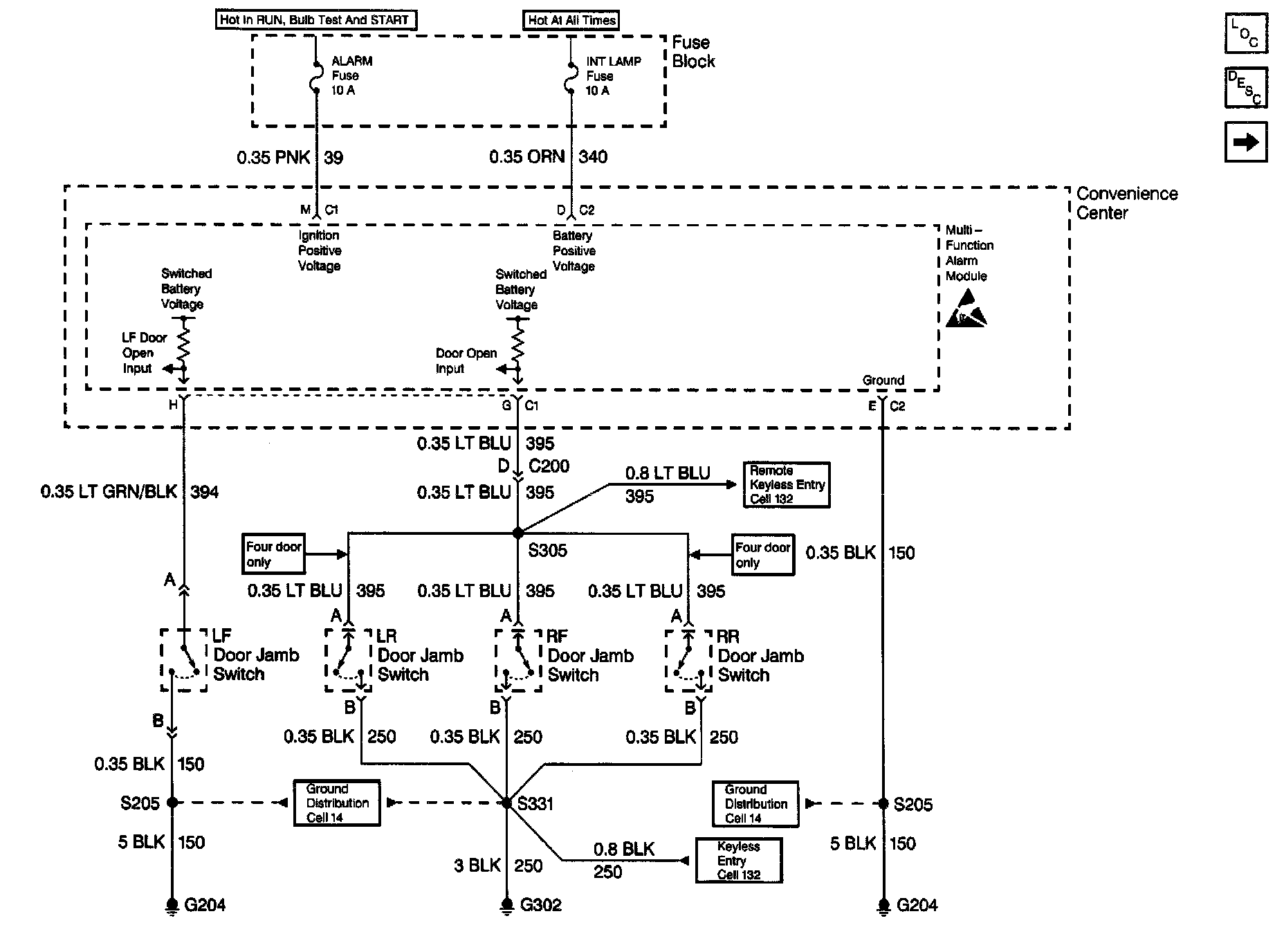

Interior Lights Schematics: Illuminated Entry:
