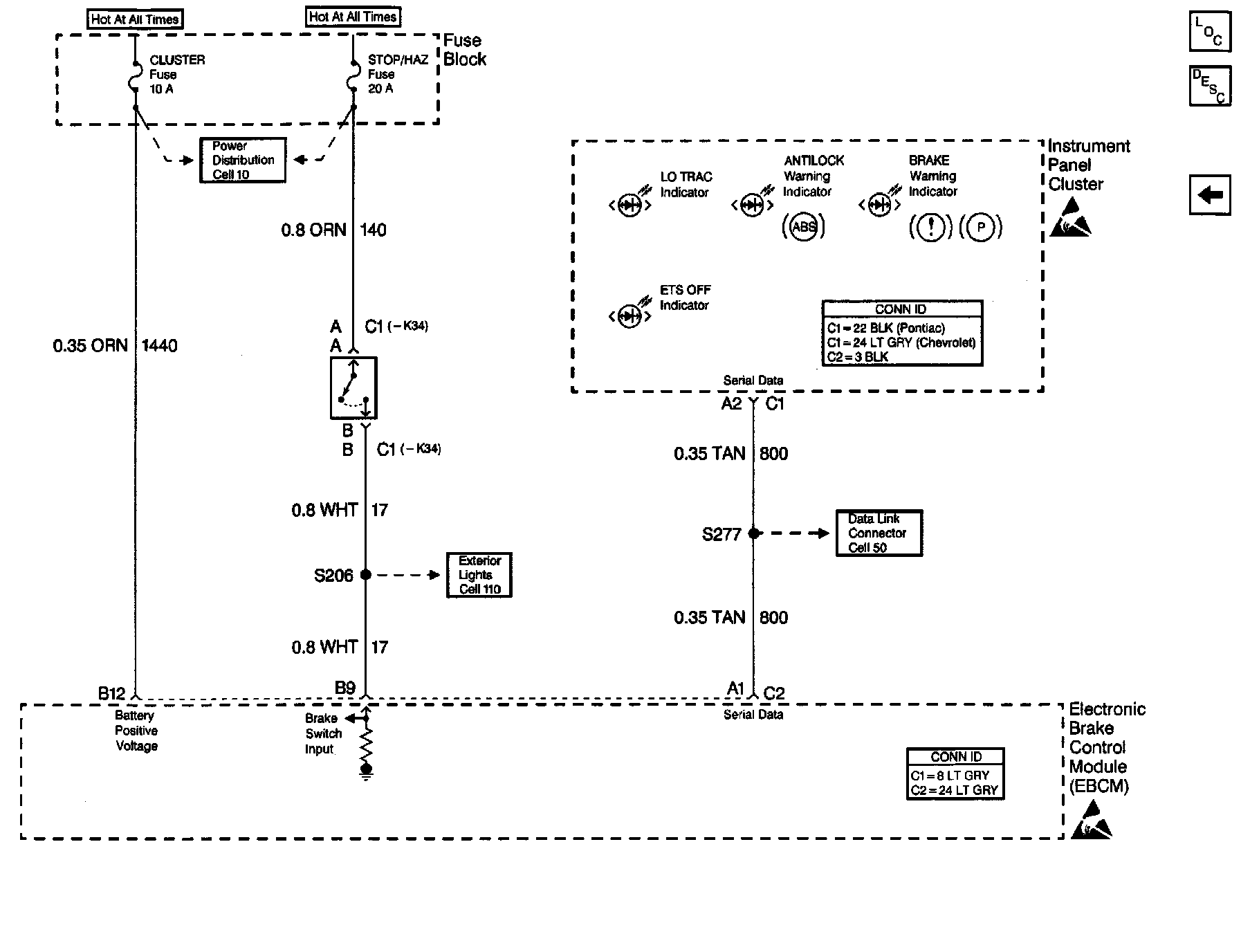

Antilock Brake Systems Cell 44: IPC, EBCM and Brake Switch
Antilock Brake Systems Cell 44: IPC, EBCM and Brake Switch
