Headlamp
>>
System Diagram
>>
Right
>>

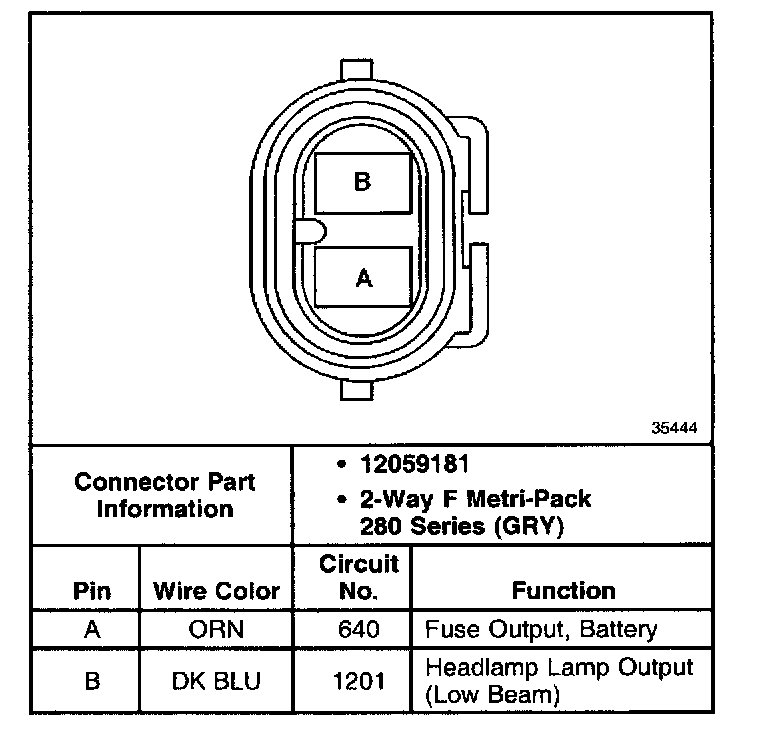

Headlamp Assembly, Right (Low Beam)
Headlamp Assembly, Right (Low Beam)
Headlamp Assembly, Right (Low Beam):
