Modulator Gear Cover Replacement

REMOVAL PROCEDURE

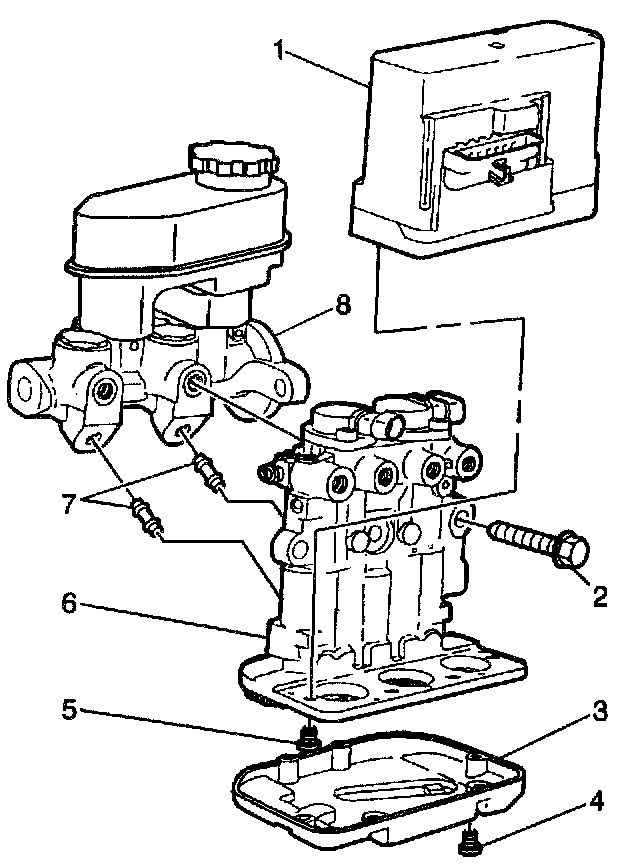

1. Remove the Torx head screws (4) that attach the gear cover (3).
2. Remove the gear cover (3).

INSTALLATION PROCEDURE





1. Install the gear cover (3) onto the modulator/master cylinder assembly.

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the Torx head screws (4).
^ Tighten the Torx screws to 4 Nm (36 inch lbs.).
