Brake Pedal Assy: Service and Repair

REMOVAL PROCEDURE





1. Remove the left sound insulator panel.

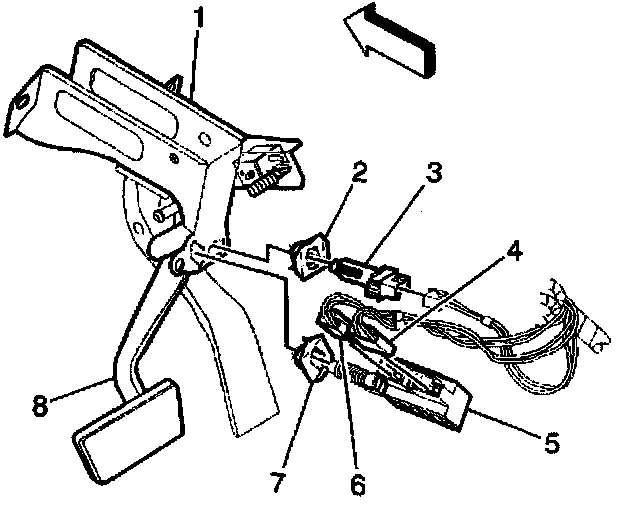

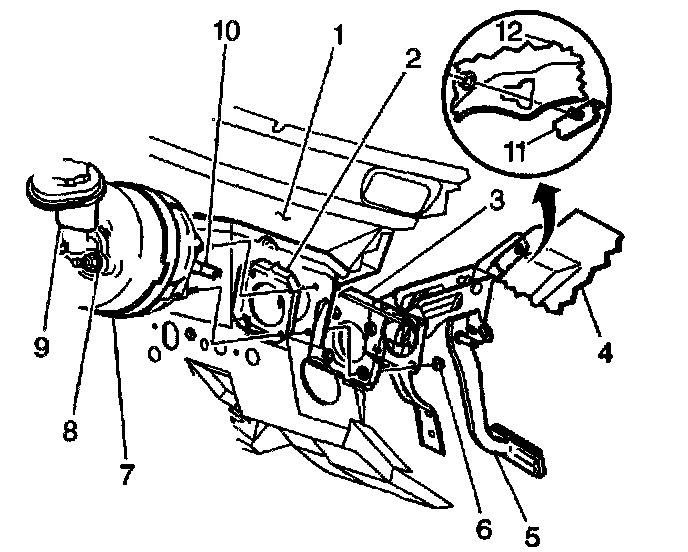

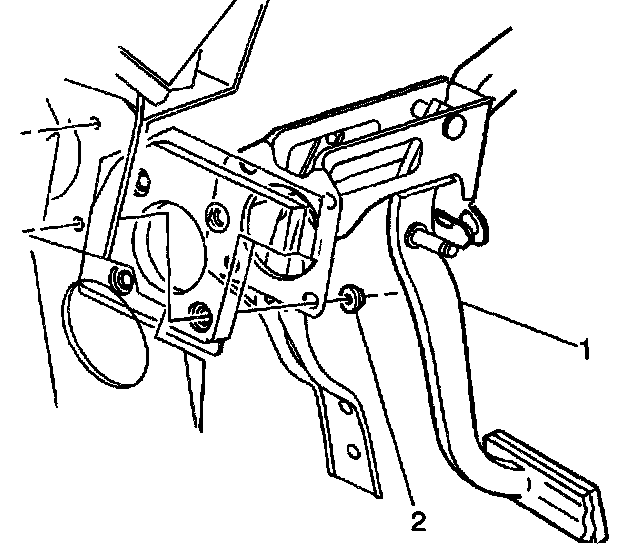

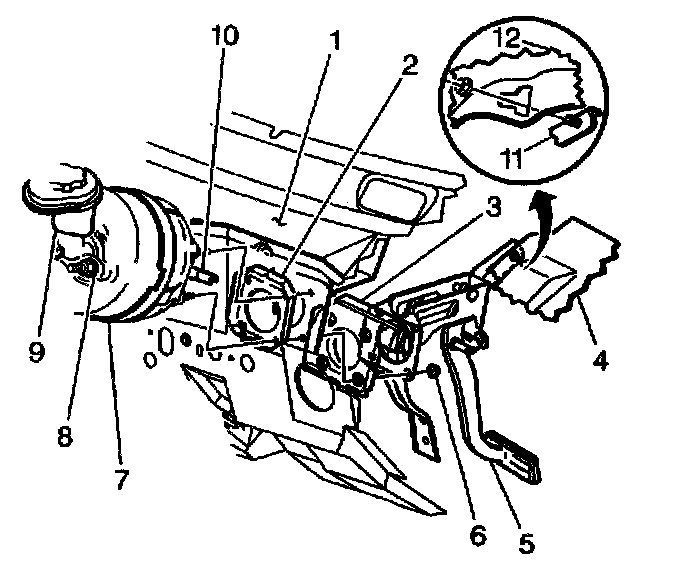

2. Disconnect the pushrod (10) from the brake pedal.
3. Disconnect the accelerator cable.





4. Remove the brake pedal assembly (1).





5. Disconnect the electrical connections.

INSTALLATION PROCEDURE





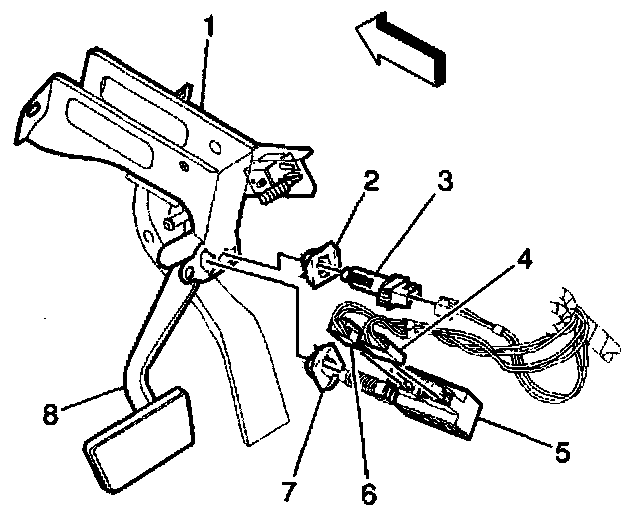

1. Connect the electrical connections.





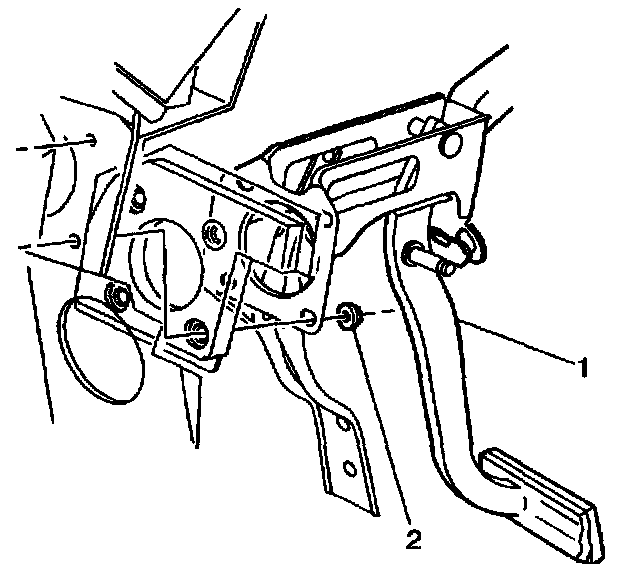

2. Install the brake pedal assembly (1).





3. Connect the accelerator cable.
4. Connect the pushrod (10) to the brake pedal.
5. Install the left sound insulator panel.
