Trim Panel Replacement - Upper Extension Convertible

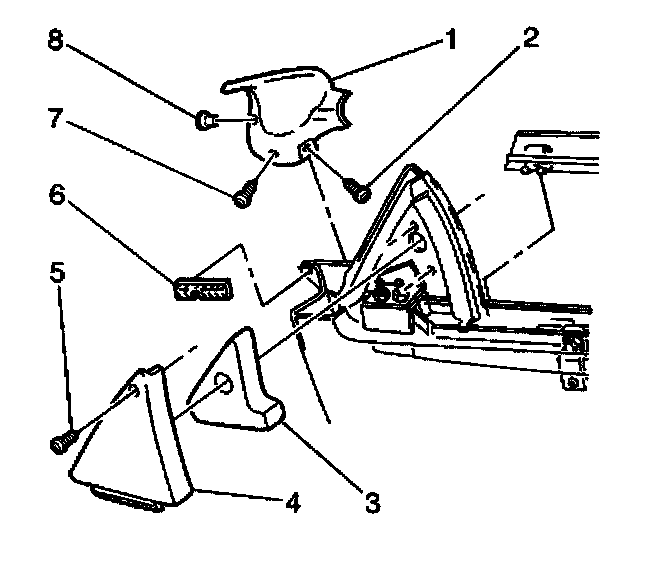

REMOVAL PROCEDURE
1. Remove the screw (5).
2. Remove the upper front panel (4).
3. Remove the mirror patch filler (3).

INSTALLATION PROCEDURE
1. Install the mirror patch filler (3).
2. Install the upper front panel (4).

NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Install the screw (5).

Tighten
Tighten the screw to 1 N.m (12 lb in).
