REMOVAL PROCEDURE




1. Remove the rear window panel trim.

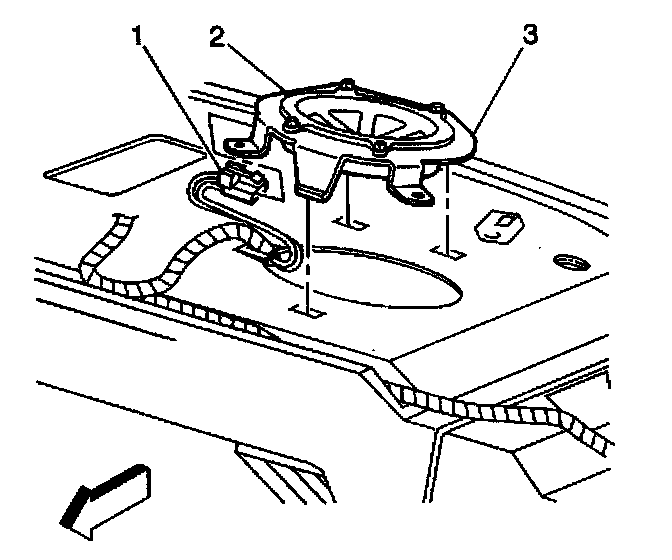

2. Press the tab on the front of the rear speaker spacer (3).
3. Lift the spacer (3).
4. Pull forward on the rear speaker spacer.
5. Disconnect the rear speaker wire harness connector (1).
6. Remove the rear speaker spacer (3).

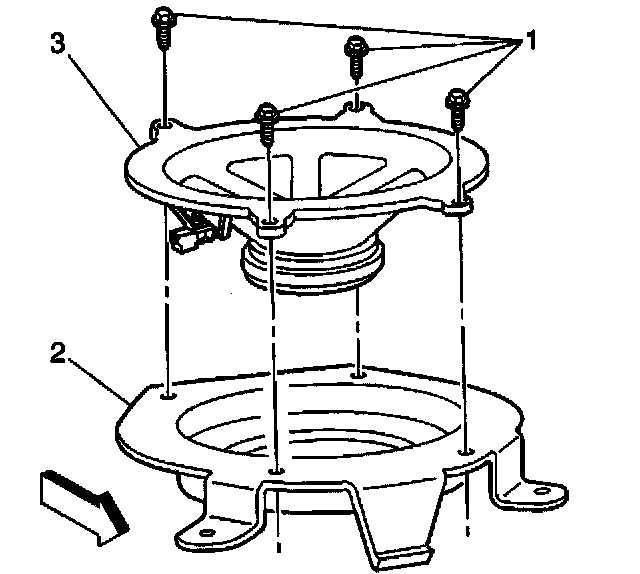

7. Remove the rear speaker screws (1).
8. Remove the rear speaker (3).

INSTALLATION PROCEDURE




1. Install the rear speaker (3) to the rear speaker spacer (2).

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the rear speaker screws (1).

Tighten
Tighten the rear speaker screws to 1.5 N.m (13.3 lb in).




3. Install the rear speaker wire harness connector (1).
4. Install the rear speaker spacer (3). Insert the tabs into the slots at the rear window shelf. Press down at the front of the rear speaker spacer (3) in order to snap the spacer into place.
5. Install the rear window panel trim.
