Convertible

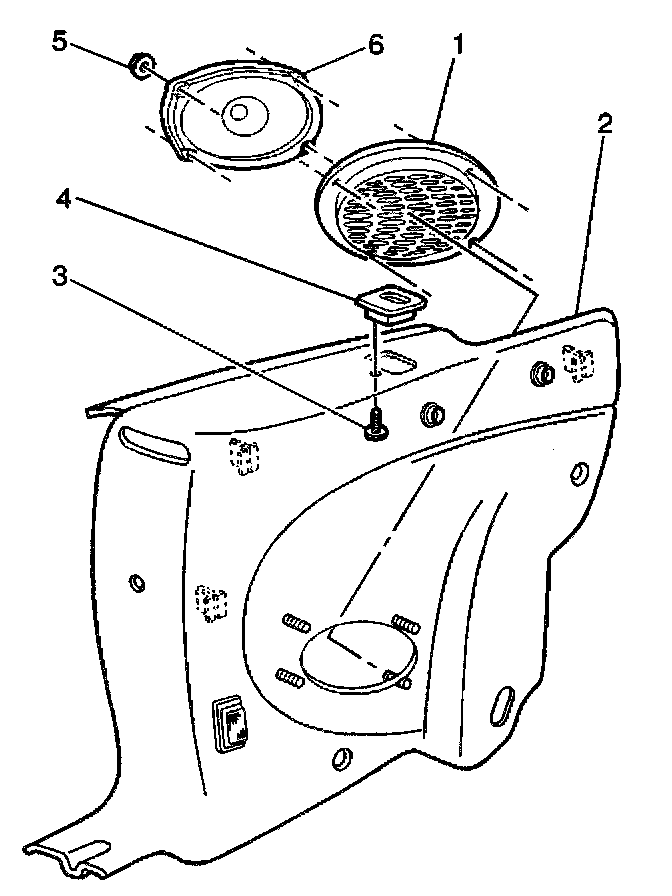

REMOVAL PROCEDURE
1. Remove the quarter trim panel.
2. Disconnect the speaker electrical connector.
3. Remove the retaining nuts (5).
4. Remove the speaker (6).
5. Remove the speaker grille (1).

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Cautions and Notices.

1. Install the retaining nuts (5).

Tighten
Tighten the nuts to 2 N.m (18 lb in).

2. Install the speaker (6).
3. Install the speaker grille (1).
4. Connect the speaker wire harness.
5. Install the quarter trim panel.
