With 3 Speed Automatic

Circuit Description

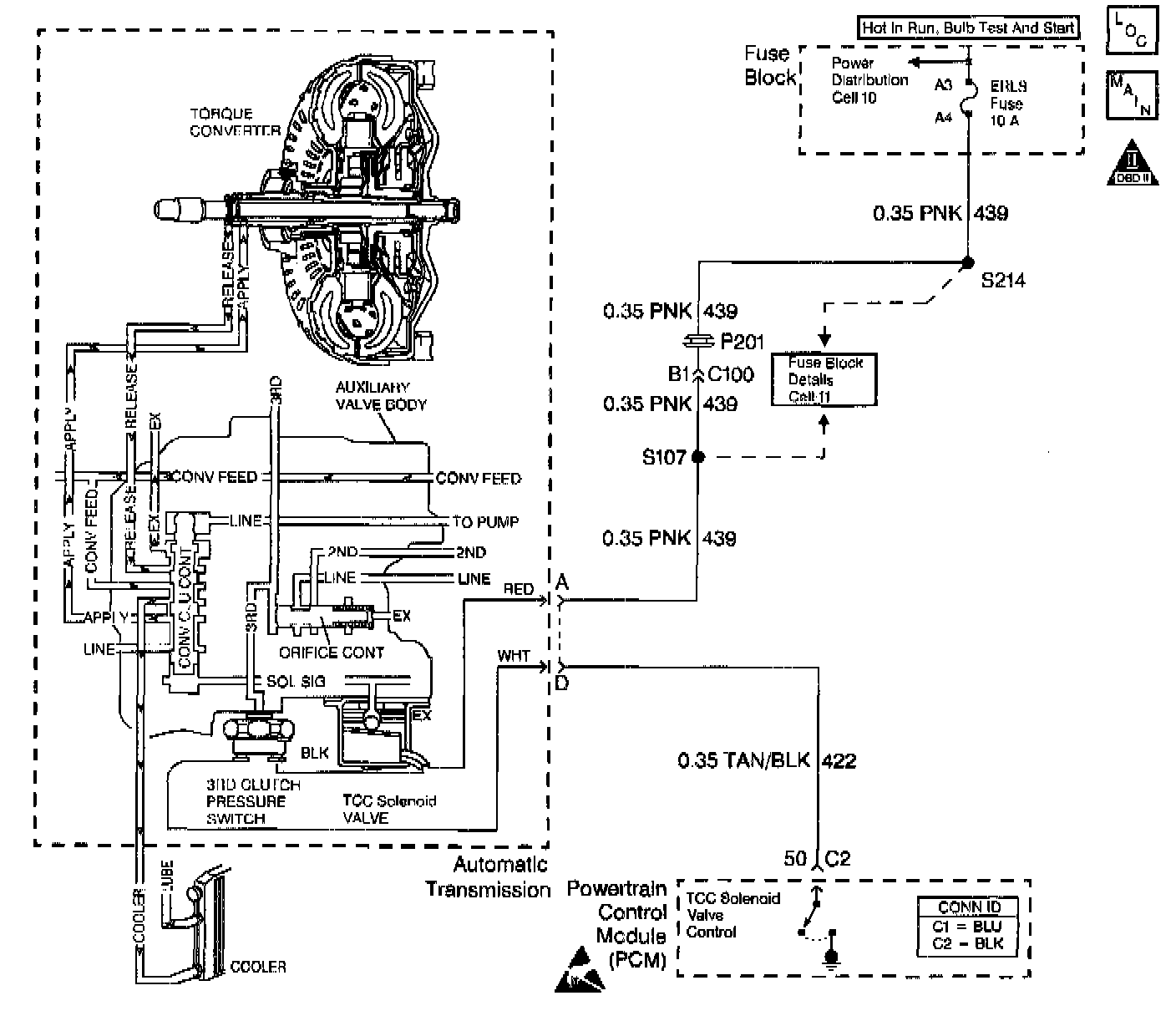

The torque converter clutch solenoid valve (TCC solenoid valve) receives power from the fuse panel on circuit 439. The normally-open 3rd clutch pressure switch interrupts the ground path from the Torque Converter Clutch (TCC) solenoid valve. The powertrain control module (PCM) activates the TCC solenoid valve by grounding the circuit through an internal switch in the PCM. Although the PCM commands the TCC solenoid valve On, the converter clutch does not apply until the 3rd clutch oil (3rd clutch engaged) closes the pressure switch, completing the circuit. Activating the TCC solenoid valve blocks exhaust fluid. This moves the converter clutch control valve to the applied position, and provides fluid pressure to engage the torque converter clutch.
When the PCM detects low TCC slip and the torque converter clutch is commanded off, then DTC P0742 sets. DTC P0742 is a type B DTC.

Conditions for Running the DTC
^ No TP sensor DTC P0122 or P0123.
^ No Vehicle Speed Sensor DTCs P0502 or P0503.
^ The PCM has commanded the TCC off.
^ The engine speed is 1,500-4,000 RPM.
^ Engine torque is greater than 13 N.m (10 lb ft)
^ MAP is 1-105 kPa.
^ The last gear change has been more than 6 seconds.
^ The speed ratio is 0.9-1.375.
^ The throttle angle is greater than 8%.
^ The slip speed is -20 to +20 RPM for 10 seconds.
^ The vehicle speed is 56-120 km/h (35-75 mph).

Conditions for Setting the DTC
DTC P0742 sets during the second consecutive trip in which the following condition occurs:
All of the above conditions are met two consecutive times (stuck on counter equals 2.)

Action Taken When the DTC Sets
^ The PCM illuminates the malfunction indicator lamp (MIL).
^ DTC P0742 stores in PCM history.

Conditions for Clearing the MIL/DTC
^ The PCM turns off the MIL during the third consecutive trip in which the diagnostic test runs and passes.
^ A scan tool clears the DTC from PCM history. The PCM clears the DTC from PCM history if the vehicle completes 40 consecutive warm-up cycles without an emission related diagnostic fault occurring.

Diagnostic Aids
^ If the vehicle stalls repeatedly, the TCC is mechanically stuck on.
^ Inspect the wiring at the PCM, the automatic transmission connector and all other circuit connecting points for the following conditions:
- A backed out terminal.
- A damaged terminal.
- Reduced terminal tension.
- A chafed wire.
- A broken wire inside the insulation.
- Moisture intrusion.
- Corrosion.

Test Description

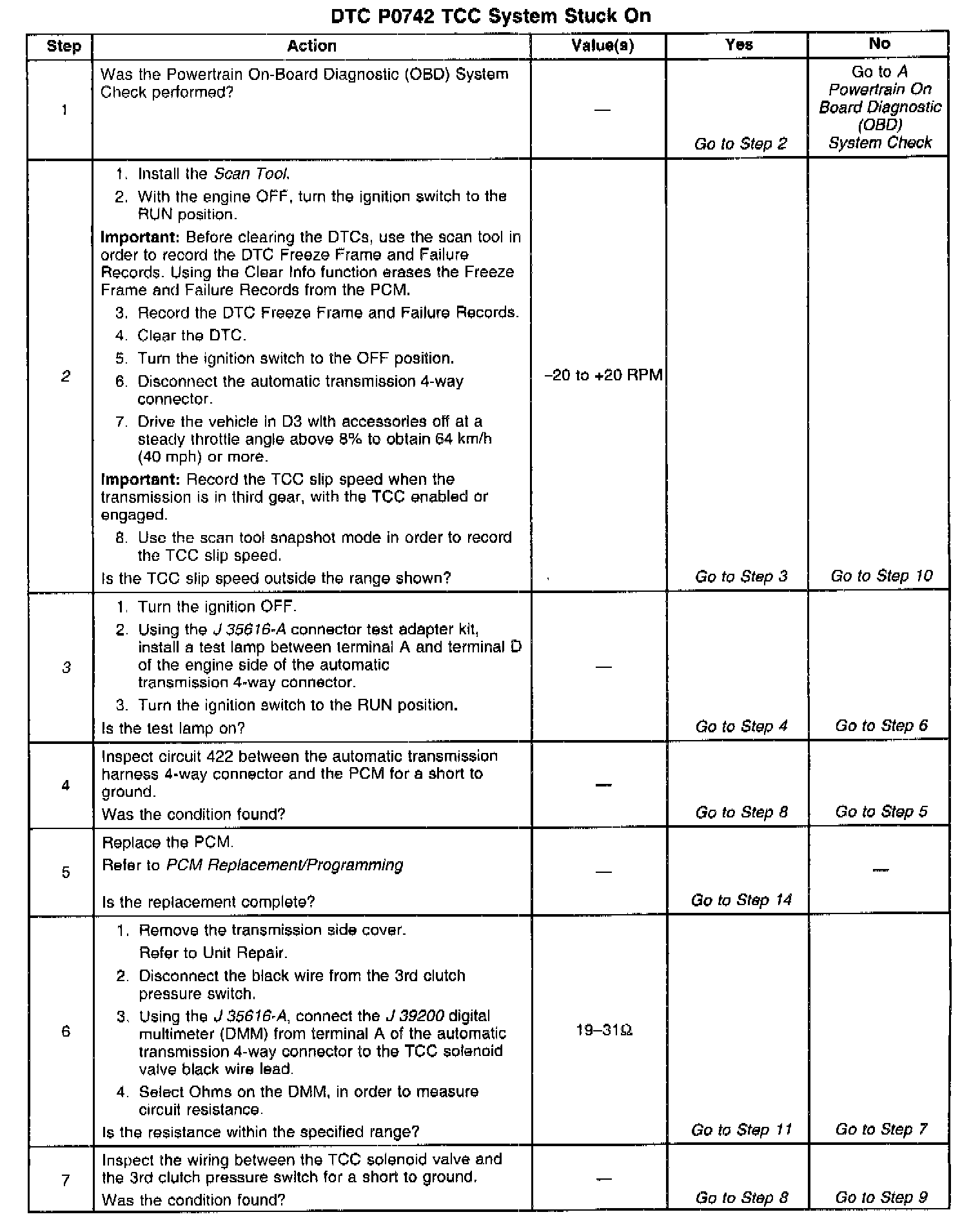

The numbers below refer to the step numbers on the diagnostic table.
2. This step determines whether the stuck on condition is due to an electrical failure, or a mechanical failure.
3. This step tests for a short to ground on circuit 422 between the transmission wiring harness and the PCM.
