P0442

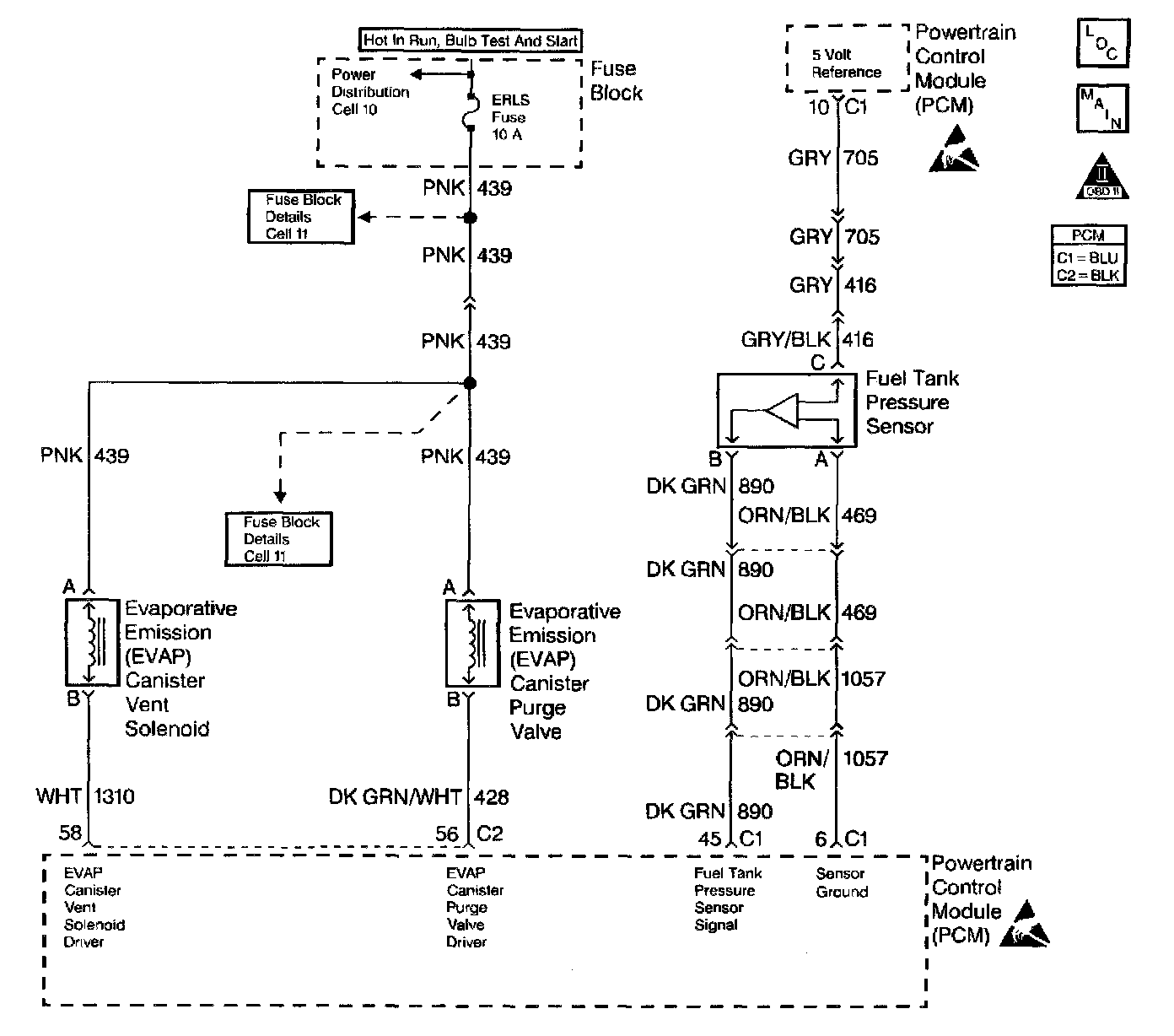

Circuit Description

The evaporative system includes the following components:

^ The fuel tank

^ The EVAP vent solenoid

^ The fuel tank pressure sensor

^ The fuel pipes and hoses

^ The fuel vapor lines

^ The fuel cap

^ The EVAP canister

^ The purge lines

^ The EVAP canister purge solenoid valve

^ The EVAP service port

The evaporative emission system is checked by applying vacuum to the EVAP system and by monitoring for a vacuum decay. The PCM monitors the vacuum level through the fuel tank pressure sensor signal. At an appropriate time, the EVAP canister purge solenoid valve and the EVAP vent solenoid are turned ON, allowing the engine to draw a small vacuum on the entire evaporative emission system. Once the desired vacuum level has been achieved, the EVAP canister purge solenoid valve turns OFF, sealing the system. A small leak in the system will cause DTC P0442 to set.

Conditions for Running the DTC

^ DTCs P0105, P0107, P0108, P0112, P0113, P0117, P0118, P0122, P0123, P0125, P0131, P0132, P0133, P0134, P0452, P0453, P0502, P0503, P0601, P0602, P1621 and P1133 are not set.

^ The BARO is more than 75 kPa.

^ The intake air temperature is between 5°C and 29°C (41°F and 84°F) at engine start up.

^ The engine coolant temperature is between 5°C and 29°C (41°F and 84°F) at engine start up.

^ The Intake Air Temperature is not more than 1°C (2°F) more than the Engine Coolant Temperature at start up.

^ The Engine Coolant Temperature is not more than 7°C (12°F) more than the Intake Air Temperature at start up.

^ The fuel tank level is between 26 percent and 74 percent.

^ The TP sensor is between 7 percent and 35 percent.

Conditions for Setting the DTC

The EVAP system is unable to detect vacuum during the diagnostic test.

Action Taken When the DTC Sets

^ The Malfunction Indicator Lamp (MIL) illuminates.

^ The PCM records the operating conditions at the time when the diagnostic fails. This information stores in the Freeze Frame and Failure Records buffers.

^ A history DTC stores.

^ The coolant fan turns ON.

Conditions for Clearing the MIL/DTC

^ The MIL will turn off after 3 consecutive ignition cycles in which the diagnostic runs a pass.

^ A history DTC will clear after 40 consecutive warm up cycles without a malfunction.

^ A scan tool can clear the DTCs

Diagnostic Aids

Although this DTC is considered a type A diagnostic (refer to Serial Data Communications), this DTC acts like a type B diagnostic under certain conditions. Whenever this diagnostic reports that the system has passed, or if the battery is disconnected, the diagnostic must fail twice before setting a DTC. The initial failure does not report to the diagnostic executive or display on a scan tool. A passing system always reports to the diagnostic executive immediately.

If a DTC P0461 is set along with an EVAP System DTC, the EVAP DTC cannot be considered valid until you repair and clear DTC P0461.

Check for the following conditions:

^ Any missing or damaged O-rings at the fuel vapor and the EVAP purge line canister fittings.

^ A cracked or a punctured EVAP canister.

^ A damaged source vacuum line, EVAP purge line, EVAP vent hose, or fuel tank vapor line.

^ A poor electrical terminal connection at the PCM. Inspect the harness electrical connectors for the following conditions:

- Backed out terminals

- Improper mating

- Broken locks

- Improperly formed connectors

- Damaged terminals

- A poor terminal to wire connection

^ A damaged harness. Inspect the wiring harness for an intermittent open or shorted circuit in the following components:

- EVAP vent solenoid

- EVAP canister purge solenoid valve

- Fuel tank pressure sensor

^ Refer to EVAP System Cleaning for further procedure.

Test Description

The number(s) below refer(s) to the step number(s) on the Diagnostic Table.

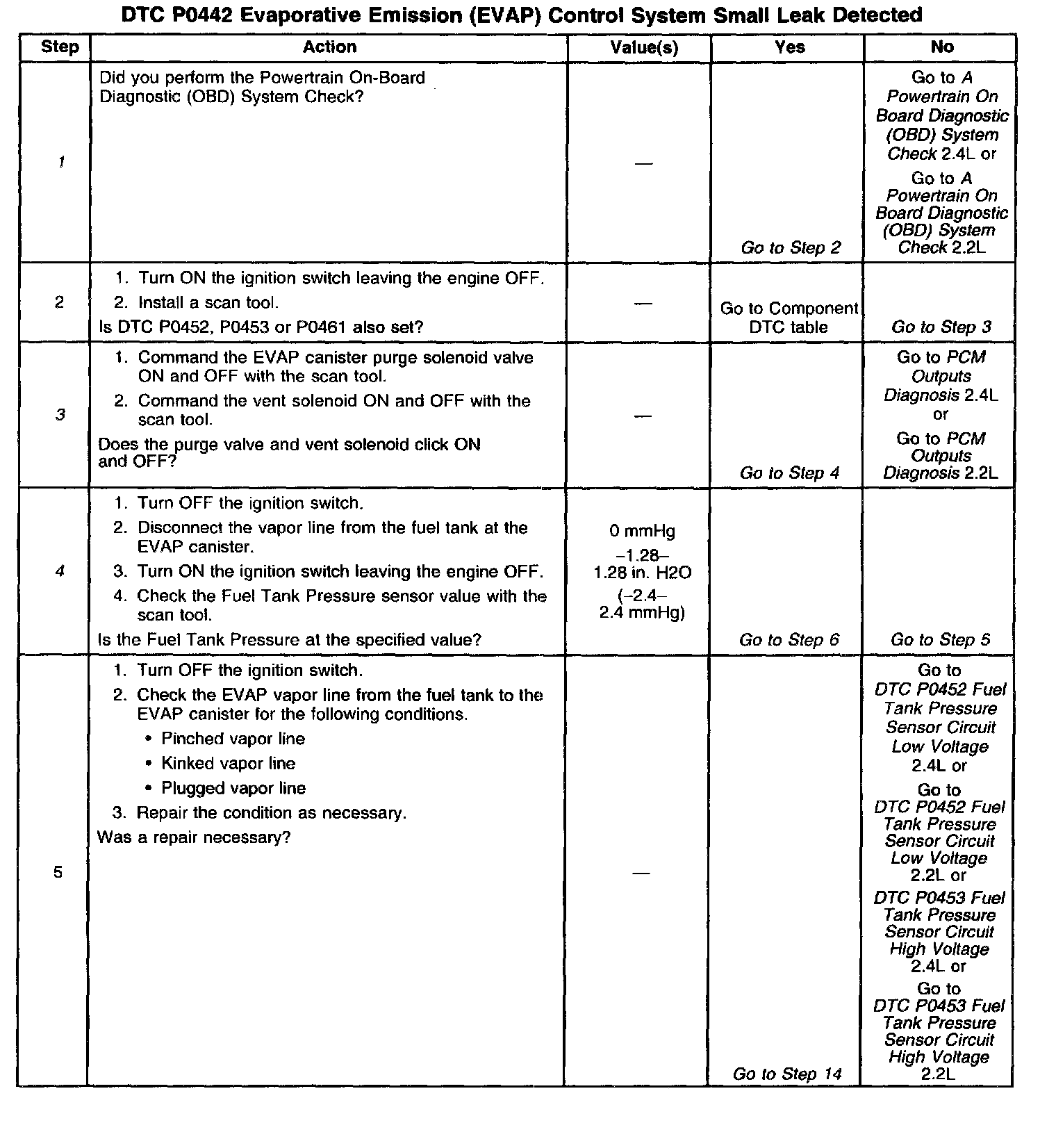

1. The Powertrain OBD System Check prompts you to complete some of the basic checks and to store the freeze frame and failure records data on the scan tool if applicable. This creates an electronic copy of the data captured when the malfunction occurred. The scan tool stores this data for later reference.

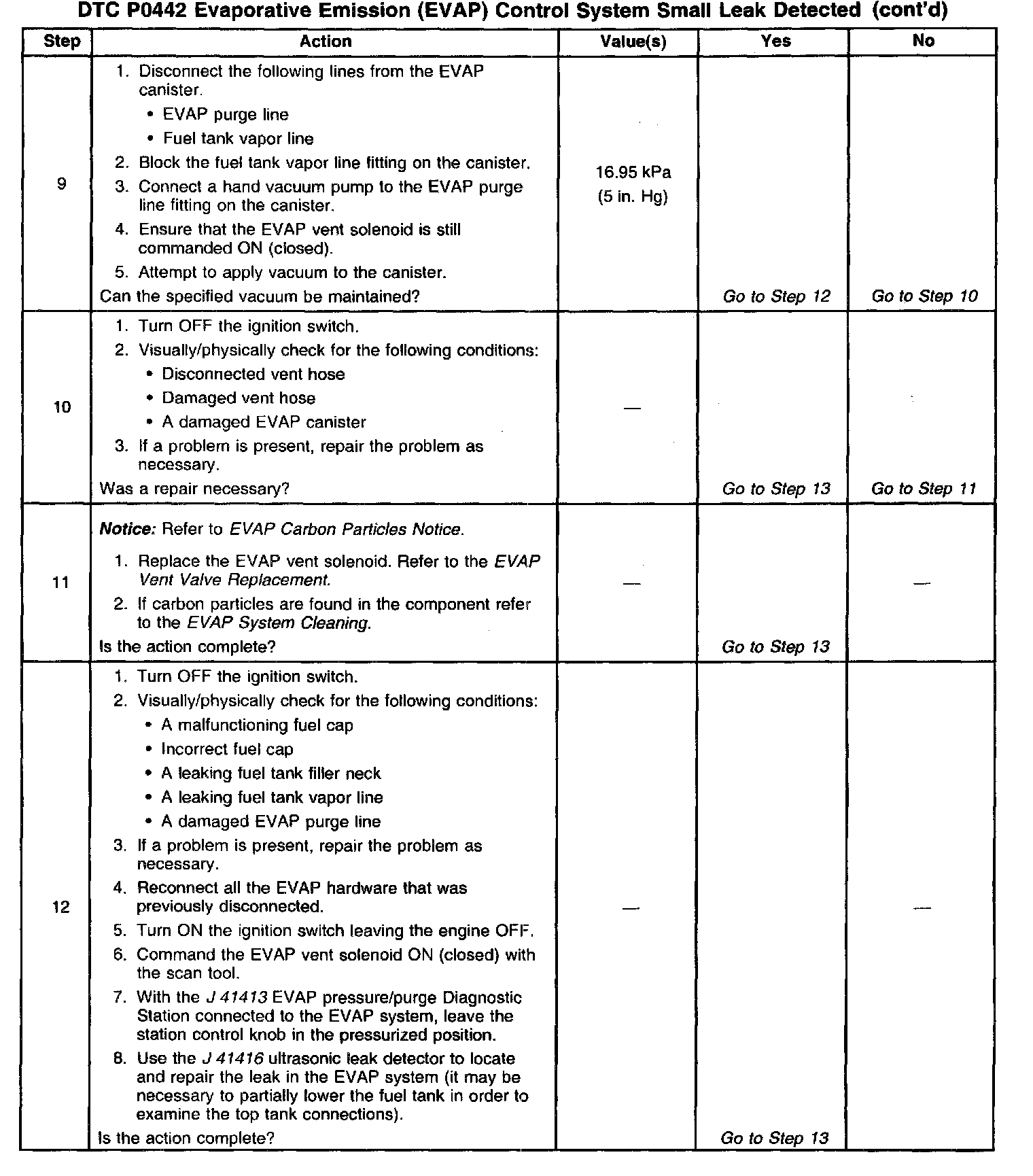

3. If a vent solenoid or an EVAP canister purge solenoid valve electrical malfunction is present, the purge system will not operate correctly. Repairing the electrical malfunction will very likely correct the condition that set DTC P0442.

4. This step checks the fuel tank pressure sensor at the ambient pressure.

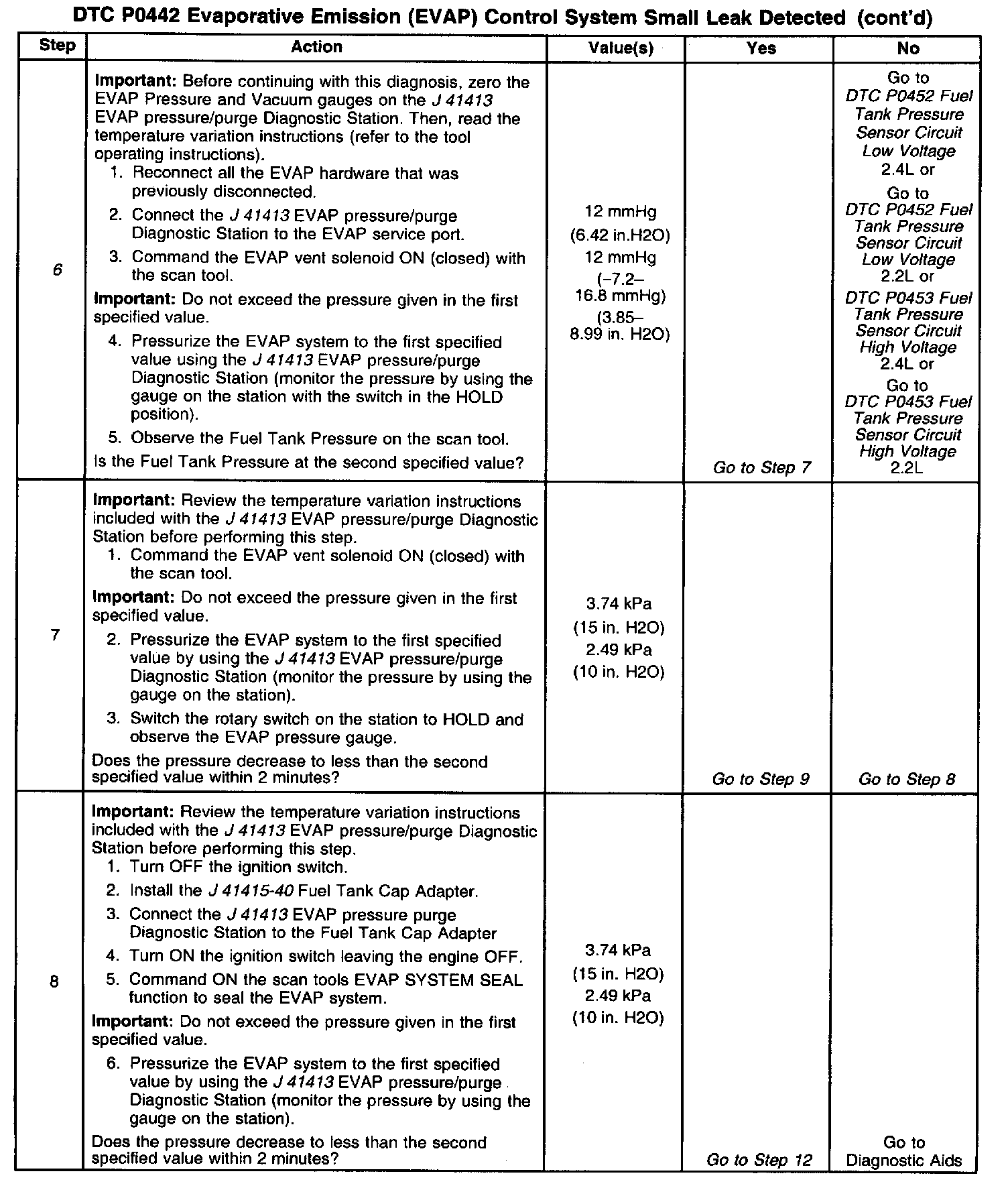

6. This step verifies that the fuel tank pressure sensor accurately reacts to the EVAP system pressure changes.

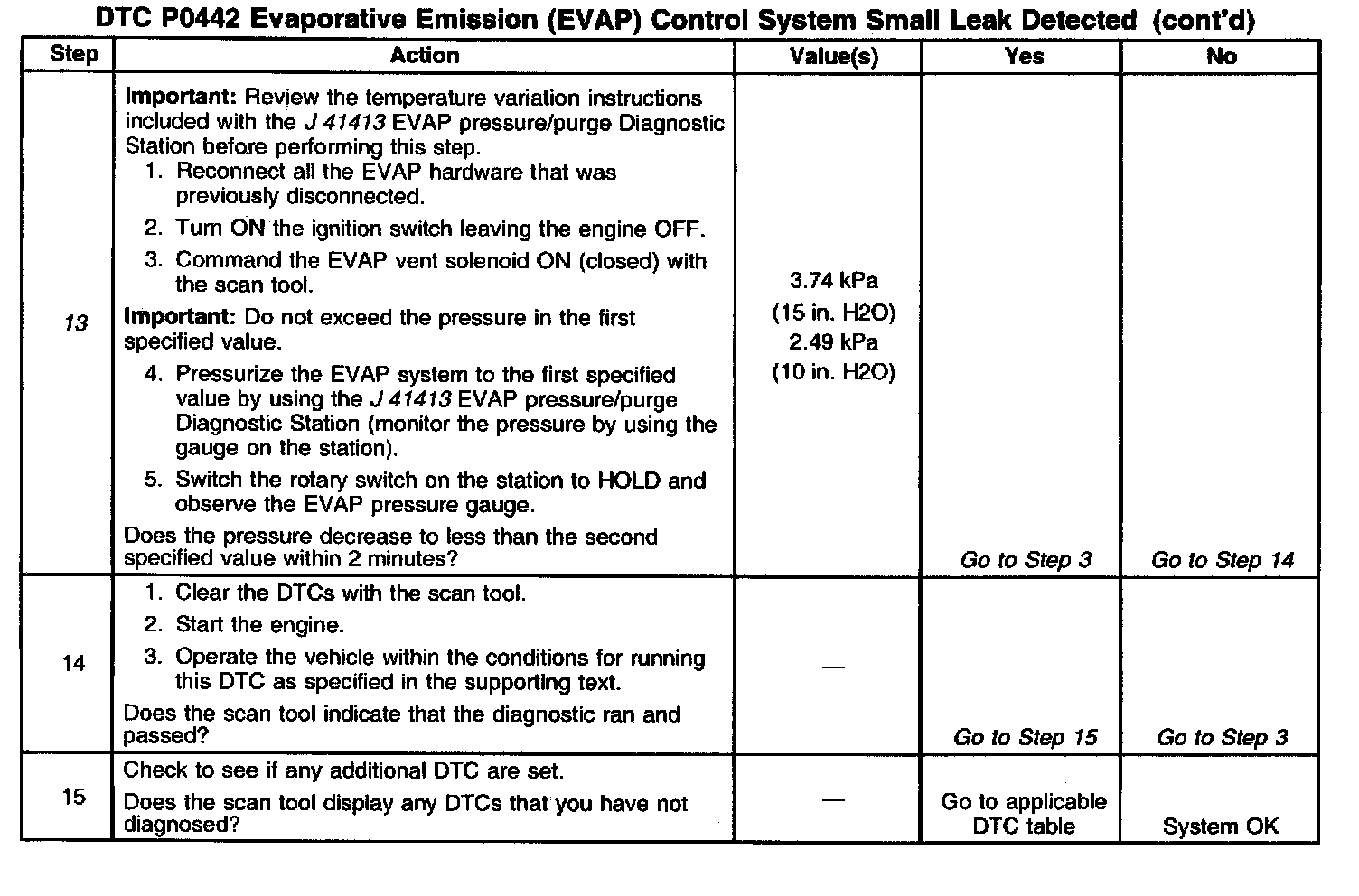

13. This step insures proper system integrity.
