P0132
Circuit Description
The Powertrain Control Module (PCM) supplies a voltage of about 0.45 volt between the Oxygen Sensor (O2S 1) signal and the ground circuit. The Oxygen Sensor (O2S 1) varies the voltage within a range of about 1 volt if the exhaust is rich, down through about 0.10 volt if the exhaust is lean.
The sensor is like an open circuit and produces no voltage when below 315°C (600°F). An open sensor circuit or a cold sensor causes an Open Loop operation.
Replace the entire oxygen sensor (O2S 1) assembly (Do not attempt to repair the oxygen sensor) it the following conditions exist:
^ Damaged wiring
^ Damaged electrical connector
^ Damaged terminal(s)
Conditions for Running the DTC
^ DTCs P0105, P0107, P0108, P0112, P0113, P0117, P0118, P0122, P0123, P0171, P0200, P0300, P0301, P0302, P0303, P0304, P0335, P0440, P0442, P0446, P0506, P0507, P0601, P0602, or P1441 not set.
^ Air flow is more than 3 grams per second.
^ Engine Coolant Temperature (ECT) is more than 70°C (158°F).
^ Engine is operating in Closed Loop.
^ Throttle Position (TP) angle is between 5% and 50%.
^ Engine has met the above conditions for 30 seconds.
Conditions for Setting the DTC
O2S 1 voltage is more than 946 mV for 50 seconds.
Or
O2S 1 voltage is more than 1042 mV for 50 seconds while in deceleration mode.
Action Taken When the DTC Sets
^ The Malfunction Indicator Lamp (MIL) will illuminate after two consecutive ignition cycles in which the diagnostic runs with the fault active.
^ The PCM will record the operating conditions at the time that the diagnostic fails. This information will store in the Freeze Frame and Failure Records butters.
^ A history DTC stores.
^ The coolant fan turns ON.
^ The vehicle will operate in an Open Loop operation.
Conditions for Clearing the MIL/DTC
^ The MIL will turn OFF after three consecutive ignition cycles in which the diagnostic runs without a fault.
^ A history DTC will clear after 40 consecutive warm up cycles without a fault.
^ The MIL/DTCs can be cleared by using the scan tool.
Diagnostic Aids
The DTC P0132 or rich exhaust is most likely caused by one of the following items:
^ Fuel pressure - The system will go rich if fuel pressure is to high. The PCM can compensate for some increase, however, if it gets too high, a DTC P0132 will be set. Refer to the Fuel System Diagnosis 2.4L or Fuel System Diagnosis 2.2L. Component Tests and General Diagnostics
^ Leaking injector A leaking or malfunctioning injector can cause the system to go rich causing a DTC P0132. Refer to the Fuel Inj Coil Test - ECT Between 10-35 Degrees C 2.4L or Fuel Inj Coil Test - ECT Between 10-35 Degrees C 2.2L. Component Tests and General Diagnostics
^ Electronic Ignition (EI) shielding - An open ICM reference low circuit may result in a EMI or induced electrical noise. The PCM looks at this noise as a Crankshaft Position (CKP) sensor pulses. The additional pulses result in a higher than actual engine speed signal. The PCM then delivers too much fuel causing the system to go rich. The engine tachometer will also show higher than actual engine speed which can help in diagnosing this problem.
^ MAP sensor - An output that causes the PCM to sense a higher than normal manifold pressure (low vacuum) can cause the system to go rich. Disconnecting the MAP sensor electrical connector will allow the PCM to set a fixed value for the MAP sensor. Substitute a different MAP sensor if the rich condition is gone while the MAP sensor is disconnected.
^ Pressure regulator - Check for a leaking fuel pressure regulator diaphragm by checking for the presence of liquid fuel in the vacuum line to the fuel pressure regulator.
^ TP sensor - An intermittent TP sensor output will cause the system to go rich due to a false indication of the engine accelerating.
^ O2S 1 contamination - Inspect the O2S 1 sensor for silicone contamination from fuel or the use of improper RTV sealant. The O2S 1 sensor may have a white powdery coating and this will result in a high but false voltage signal (rich exhaust indication). The PCM will then reduce the amount of fuel delivered to the engine causing a severe surge or driveability problem.
Test Description

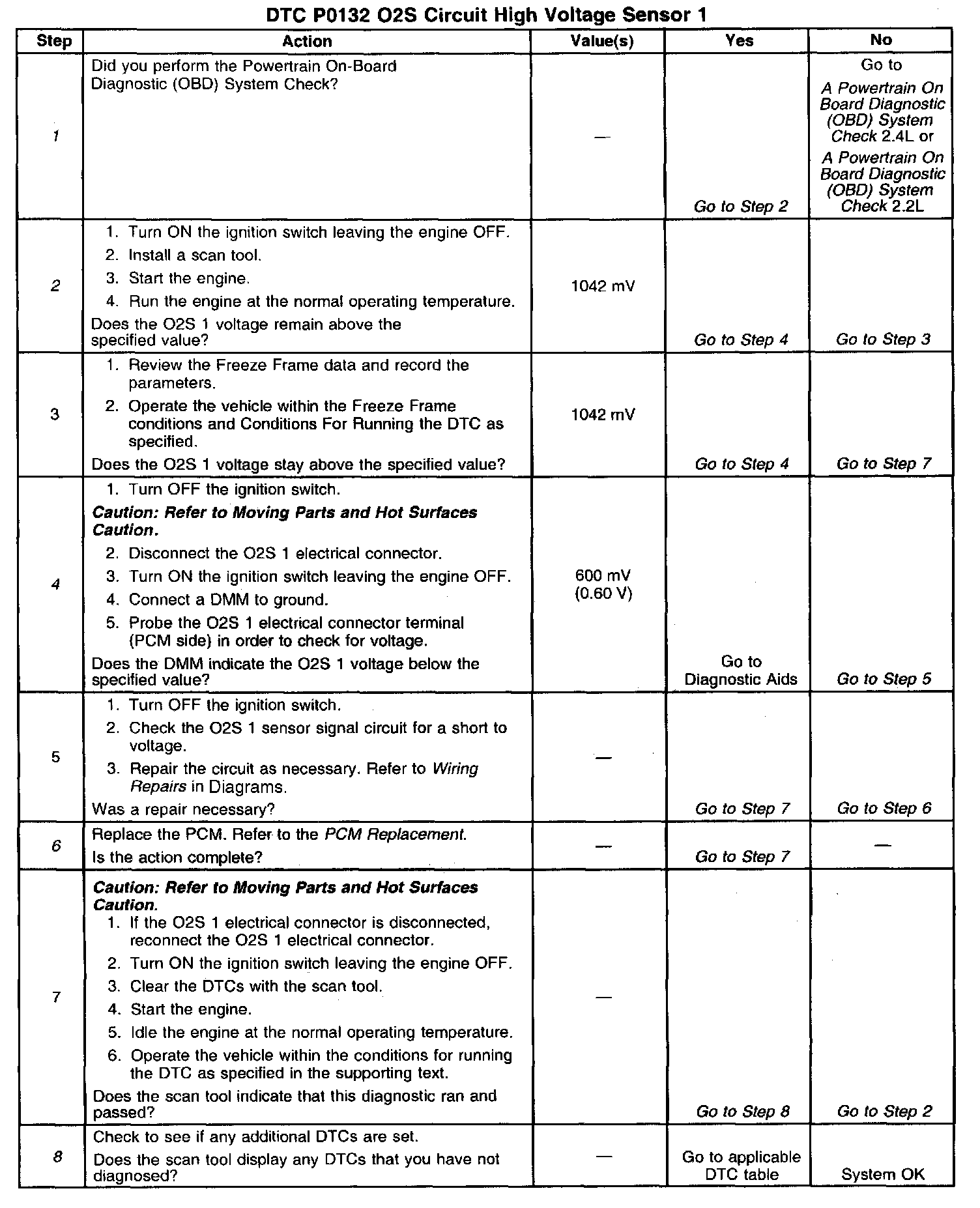

The number(s) below refer(s) to the step number(s) on the Diagnostic Table.
1. The Powertrain OBD System Check prompts you to complete some of the basic checks and to store the freeze frame and failure records data on the scan tool if applicable. This creates an electronic copy of the data captured when the malfunction occurred. The scan tool stores this data for later reference.
2. This step determines if the DTC P0132 is the result of a hard malfunction or an intermittent condition. It may be necessary to operate the vehicle within the Freeze Frame conditions and Conditions for Setting the DTC in order to duplicate the malfunction detected by the PCM.
4. This step simulates a DTC P0131. If the PCM senses the change, the PCM and wiring are OK.
6. Reprogram the replacement PCM and perform the crankshaft position system variation procedure. Refer to the latest Techline information for PCM programming and the CKP System Variation Learn Procedure for the Crankshaft Position System Variation Learn Procedure.
8. If no malfunctions have been found at this point and no additional DTCs were set, refer to the Diagnostic Aids for additional checks and information.
