Home >> Chevrolet >> 1998 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Heater-A/C and Rear Defogger Control Assembly >> C2

C2

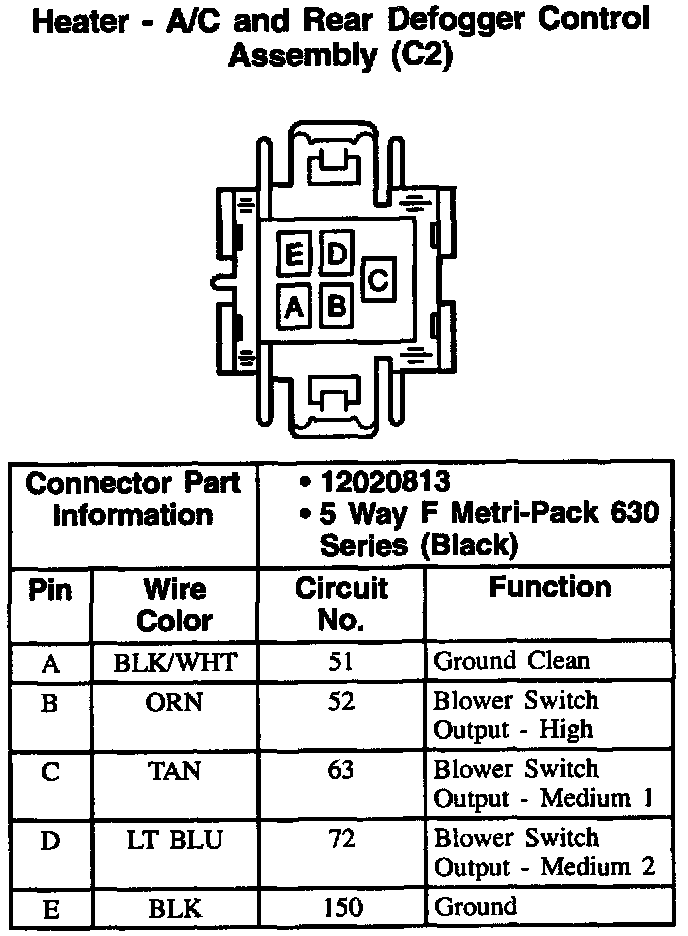

Heater - A/C And Rear Defogger Control Assembly (C2):
