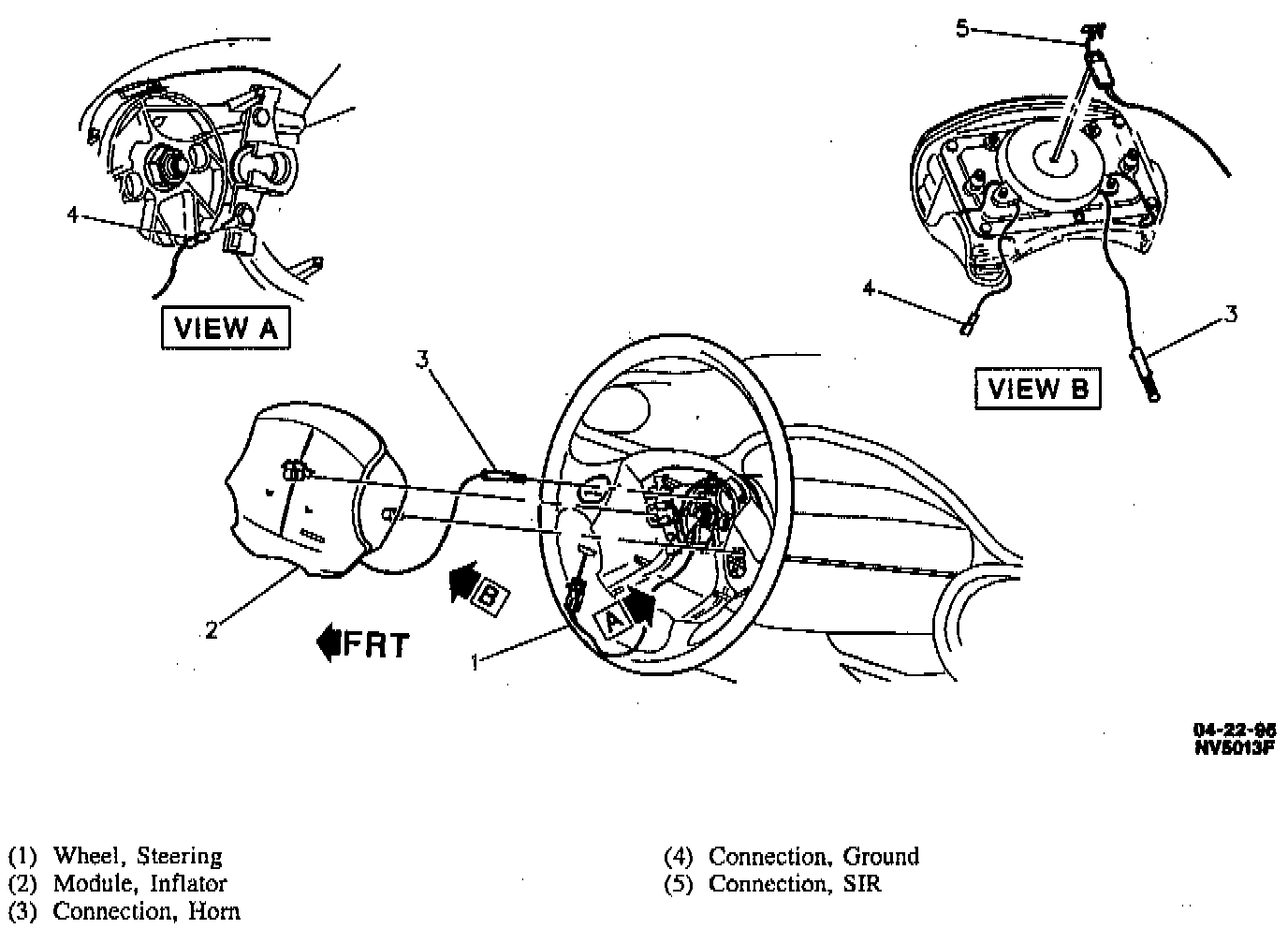

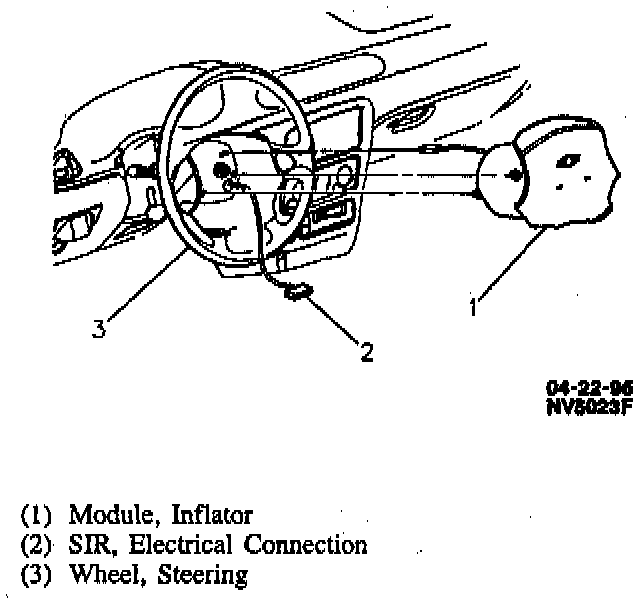

Inflator Module - Replacement

REMOVE OR DISCONNECT
^ Disable the Supplemental Inflatable Restraint (SIR) system.

1. Two screws from the back of the steering wheel at the 3 O'clock and 9 O'clock positions using a T-30 Torx (TM) driver (or equivalent).
2. Electrical connection from rear of inflator module.
3. Inflator module.

INSTALL OR CONNECT
1. Electrical connections to rear of inflator module.
2. Route wires through plastic clip on the back of the module.
^ Inspect steering wheel brackets and bushings for damage. Remove and replace as necessary.
3. Align inflator module with the bushings.
4. Press inflator module cover above each of the fastener to be installed until a click is heard.
5. Inflator module two screws through back of steering wheel.
^ Tighten screws to 7 Nm (62 lb in).
6. Insure Inflator module is seated properly by carefully pulling on it.
7. Enable the SIR system.
