Fastener Tightening Specifications - Cylinder Head

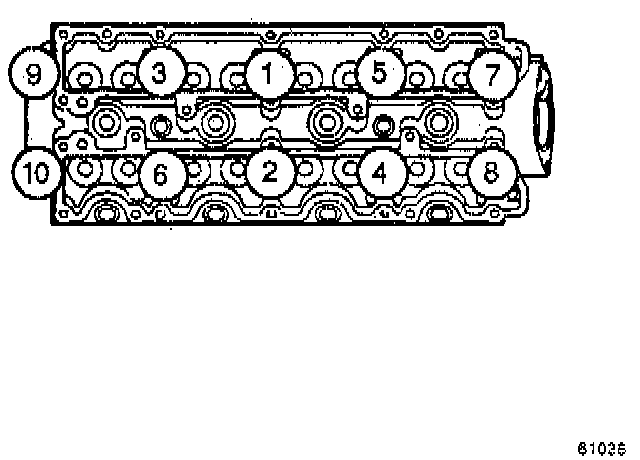

Cylinder Head Bots:
Tighten the cylinder head bolts sequentially in two steps.
1st step torque bolts 1-8: 65 Nm (40 lb ft) + 90 degrees
2nd step torque bolts 9 and 10: 40 Nm (30 lb ft) + 90 degrees.
Cylinder Head Bots:
Tighten the cylinder head bolts sequentially in two steps.
1st step torque bolts 1-8: 65 Nm (40 lb ft) + 90 degrees
2nd step torque bolts 9 and 10: 40 Nm (30 lb ft) + 90 degrees.
