Oil Pan, Engine

TIGHTENING SPECIFICATIONS
Oil Pan Studs: 26 Nm (19 ft. lbs.)

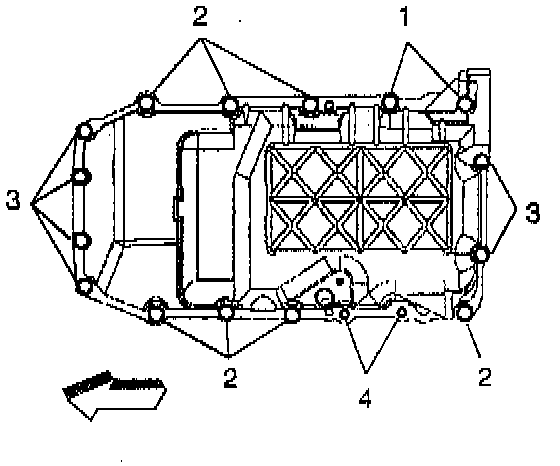

Oil Pan Bolts:
Tighten the oil pan bolts sequentially.
(1) torque: 24 Nm (18 ft. lbs.)
(2) torque: 24 Nm (18 ft. lbs.)
(3) torque: 12 Nm (106 inch lbs.)
(4) torque: 26 Nm (19 ft. lbs.)
