Fastener Tightening Specifications

Camshaft
(exhaust) Rear Cover: 14 Nm (124 inch lbs.)
Position Sensor Bolt: 10 Nm (89 inch lbs.)





Camshaft Housing Bolts:

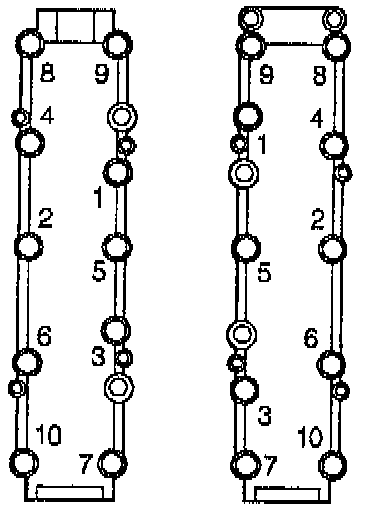

Tighten the camshaft housing bolts sequentially: 15 Nm (11 ft. lbs.) + 90 degrees.

Housing To
Fuel Pipe Bracket: 15 Nm (11 ft. lbs.) + 30°
Fuel Rail: 26 Nm (19 ft. lbs.)
Ignition Coil and Module Assembly: 22 Nm (16 ft. lbs.)
