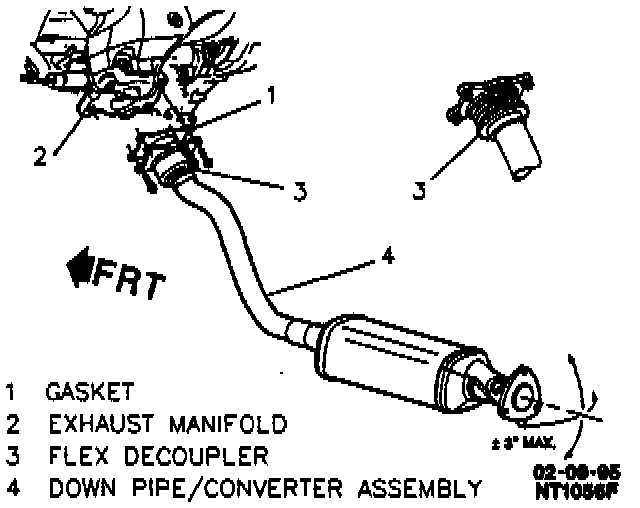

Catalytic Converter: Service and Repair

Remove or Disconnect
1. Raise vehicle.

2. Support three way catalytic converter.

3. Intermediate pipe from three way catalytic converter.

4. Exhaust manifold pipe assembly from exhaust manifold.

5. Exhaust manifold and three way catalytic converter seals.


Clean
- Flange surfaces.

Install or Connect
1. Exhaust manifold and three way catalytic converter seals.

2. Exhaust manifold pipe assembly to exhaust manifold.

3. Intermediate pipe to three way catalytic converter.

4. Lower vehicle.
