Fuel Tank Pressure Sensor: Service and Repair

Removal Procedure
1. Disconnect the negative battery cable.
2. Relieve the system fuel pressure. Refer to Fuel Pressure Release Procedure.
3. Drain fuel tank. Refer to Draining Fuel Tank.
4. Remove the fuel tank. Refer to Fuel Tank.
5. Remove the electrical connector from the fuel tank pressure sensor.

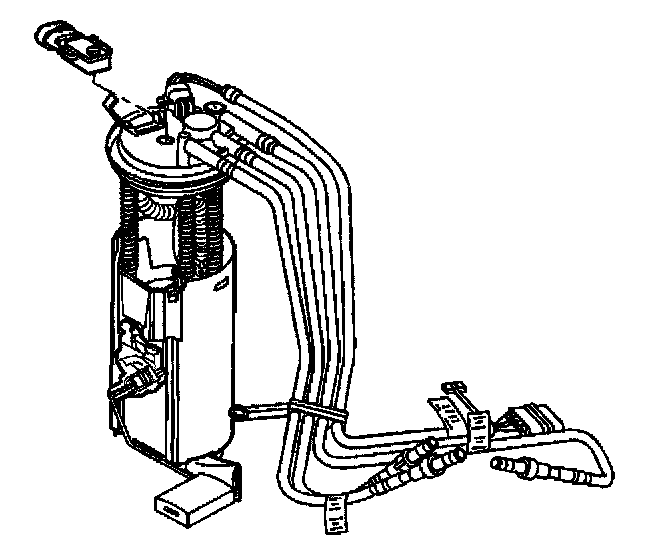

6. Remove the fuel tank pressure sensor from modular fuel sender.

Installation Procedure
1. Install the new fuel tank pressure sensor to modular fuel sender.
2. Install the electrical connector to fuel tank pressure sensor.
2. Install the fuel tank. Refer to Fuel Tank.
4. Refill tank.
5. Install the negative battery cable.
