Sunroof Module

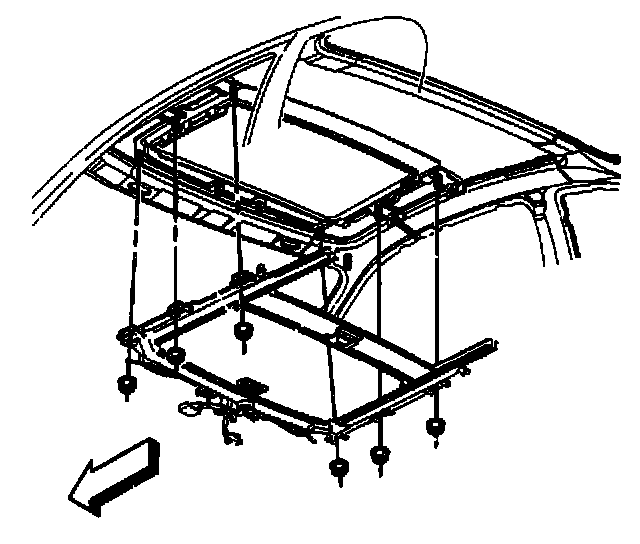

Sunroof Module Installation:

Remove or Disconnect

1. Control switch.
2. Headliner.
3. Front and rear drain hoses from sunroof module.
4. Electrical connector from control switch.
5. Bolts/screws securing sunroof module from roof
6. Sunroof from vehicle.

Install or Connect

1. Sunroof to vehicle.
2. Nuts securing sunroof module to roof.

Tighten
^ Nuts to 10 N.m (89 lb. in.).

3. Electrical connector from control switch.
4. Front and rear drain hoses to sunroof module.
5. Headliner.
6. Control switch.
