Home
>>
Chevrolet
>>
1997
>>
Lumina V6-204 3.4L DOHC VIN X SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
4T65-E Automatic Transaxle
>>

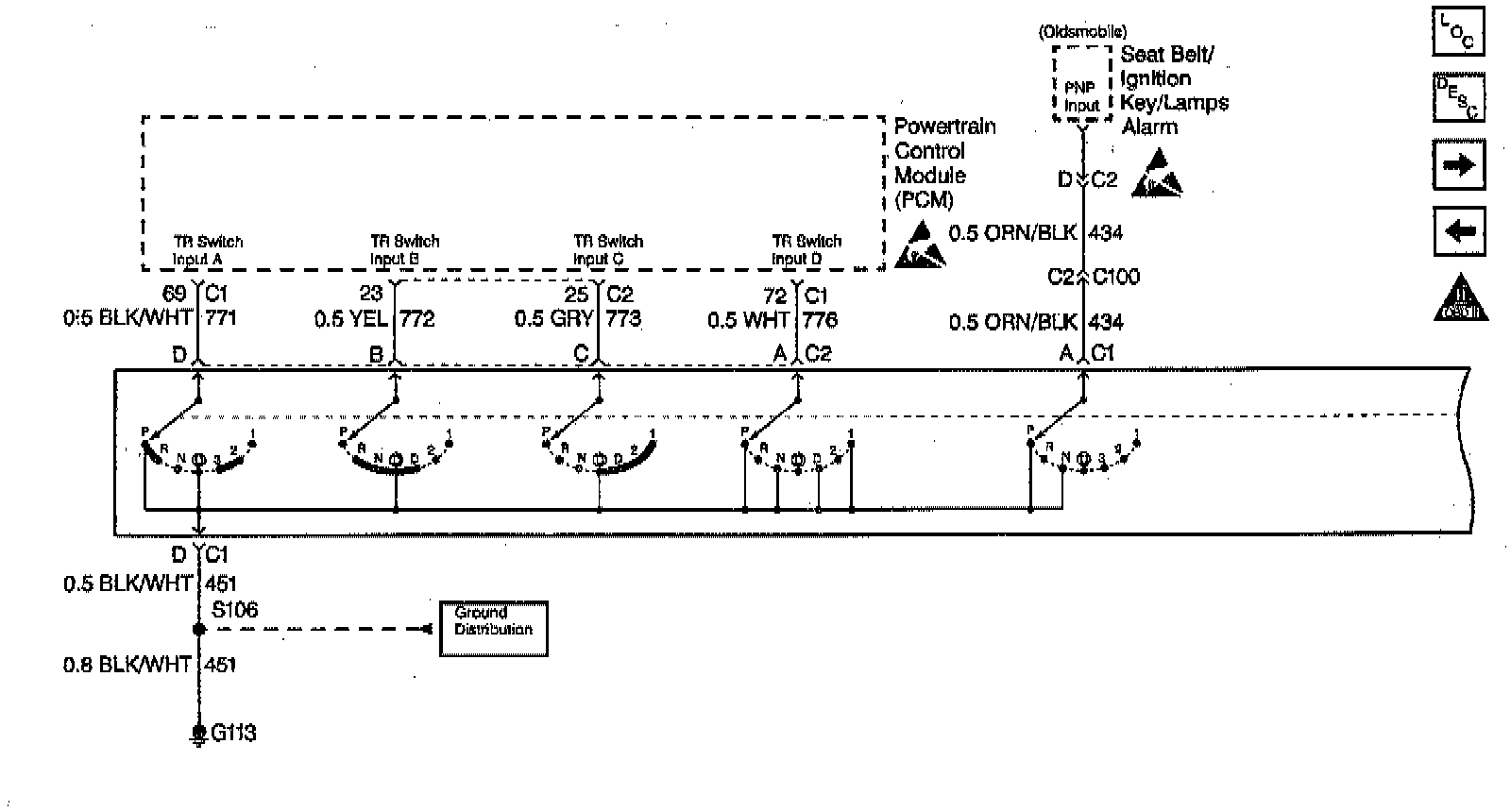

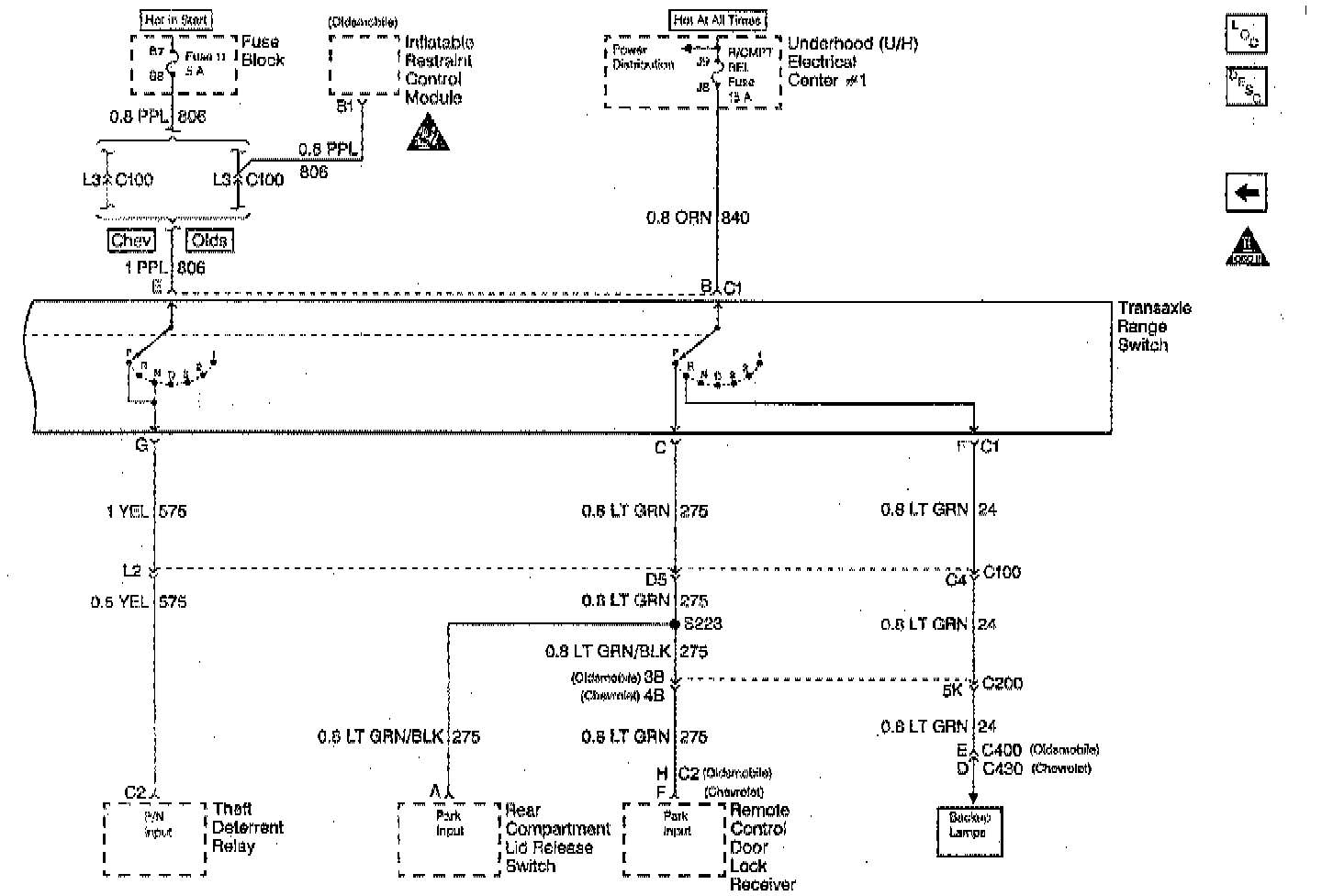

Transaxle Range Switch
Transaxle Range Switch
