Right Side

REMOVAL
1. Disconnect the negative battery cable.
2. Remove the ignition coil pack and the harness. See Powertrain Management.
3. Remove the ignition coil pack bracket and brace. See Powertrain Management.

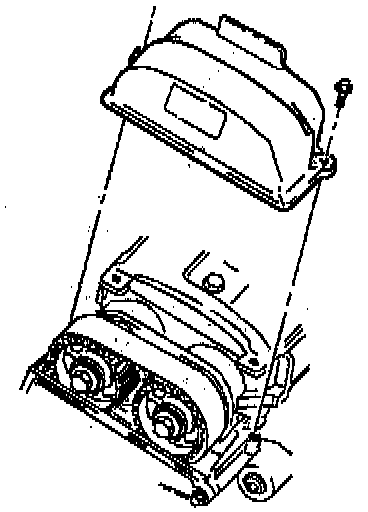

4. Remove the right upper timing belt cover retaining bolts.
5. Remove the right upper timing belt cover.

INSTALLATION
1. Install the right upper timing belt cover.
2. Install the right upper timing belt cover retaining bolts. Tighten the bolts to 10 Nm (89 inch lbs.).
3. Install the ignition coil pack bracket and brace. See Powertrain Management.
4. Install the ignition coil pack and harness. See Powertrain Management.
5. Connect the negative battery cable.
