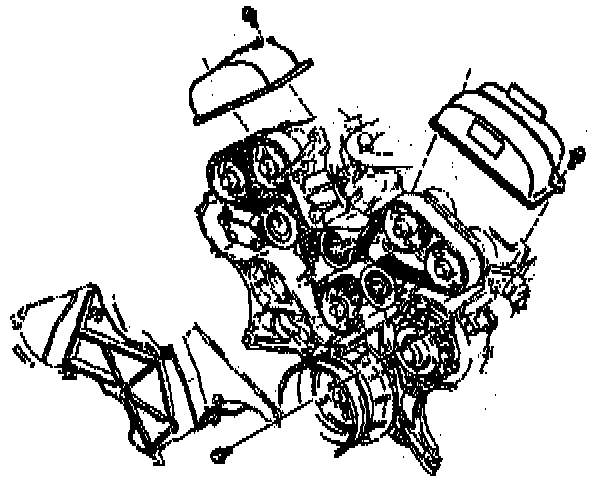

Center

REMOVAL
1. Remove the PCM harness cover.
2. Remove the drive belt tensioner.
3. Remove the left upper timing belt cover.
4. Remove the right upper timing belt cover.
5. Remove the power steering pipe retaining clip nut at the generator stud. See Steering and Suspension.
6. Remove the center timing belt cover bolts.
7. Remove the center timing belt cover.

INSTALLATION
1. Install the center timing belt cover.
2. 1nstall the center timing belt cover bolts. Tighten the front timing belt cover bolts to 10 Nm (89 inch lbs.).
3. Install the power steering retaining clip nut on the generator stud. See Steering and Suspension.
4. Install the right upper timing belt cover.
5. Install the left upper timing belt cover.
6. Install the drive belt tensioner.
7. Install the PCM harness cover.
