Wiper Motor Crank Arm Replacement

REMOVAL PROCEDURE

Wiper Motor Crank Arm Replacement: Removal Procedure:

1. Remove the wiper motor module from the vehicle.

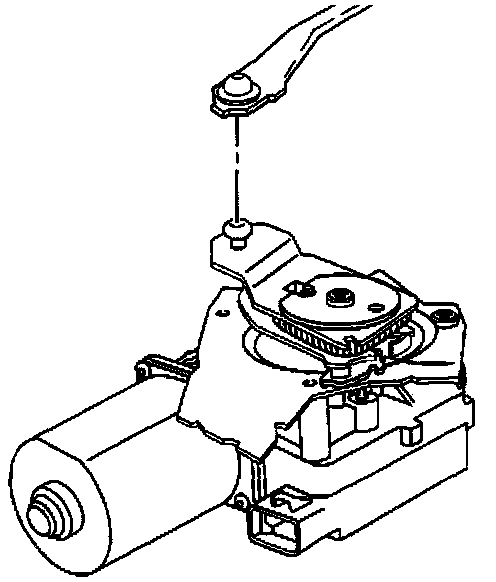

2. Disconnect the wiper transmission linkage from the crank arm.

Wiper Motor Crank Arm Replacement: Removal Procedure:

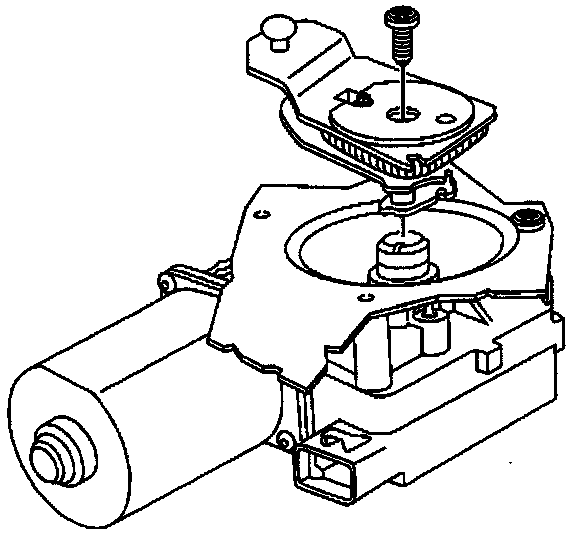

3. Remove the torx screw from the crank arm and wiper motor.
4. Remove the crank arm from the wiper motor.

INSTALLATION PROCEDURE

Wiper Motor Crank Arm Replacement: Installation Procedure:

1. Install the crank arm onto the wiper motor.

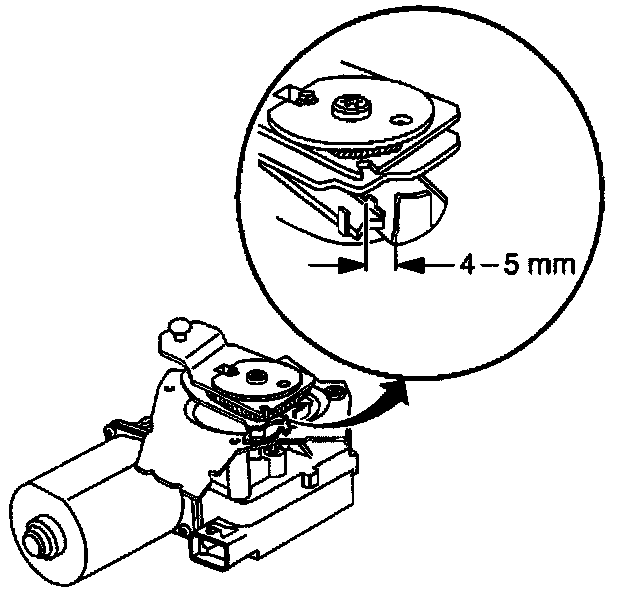

2. Position the park latch 4-5 mm from the park tab.

Wiper Motor Crank Arm Replacement: Installation Procedure:

3. Install the torx screw into the crank arm and the wiper motor

NOTE: Refer to Fastener Notice in General Information.

Tighten
Tighten the crank arm mounting screw to 15 N.m (11 lb ft).

Wiper Motor Crank Arm Replacement: Installation Procedure:

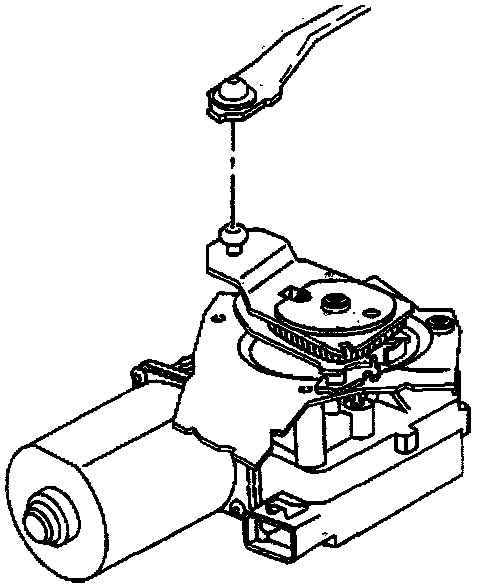

4. Connect the wiper transmission onto the crank arm.
5. Install the wiper motor module into the vehicle.
