Front Wiper Motor

REMOVAL PROCEDURE

Wiper Motor Replacement: Removal Procedure:

Tools Required
J 39232 Wiper Linkage Separator

CAUTION: Refer to Battery Disconnect Caution in General Information.

1. Disconnect the negative battery cable
2. Remove the wiper arm assemblies.
3. Remove the air inlet screen.
4. Remove the wiper motor module.

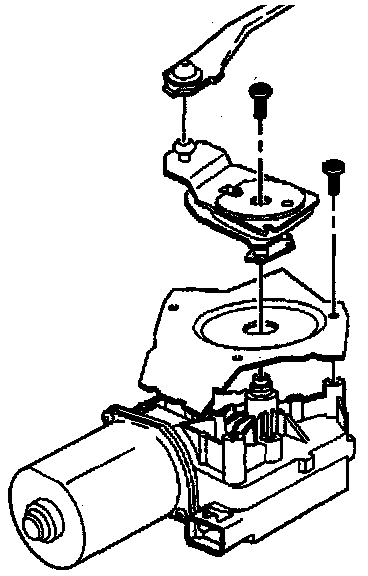

5. Disconnect the wiper transmission linkage from the crank arm.
6. Remove the three torx head screws retraining the wiper motor to the wiper motor module.
7. Remove the wiper motor from the wiper motor module.

INSTALLATION PROCEDURE

Wiper Motor Replacement: Installation Procedure:

Tools Required
J 39529 Wiper Linkage Installer

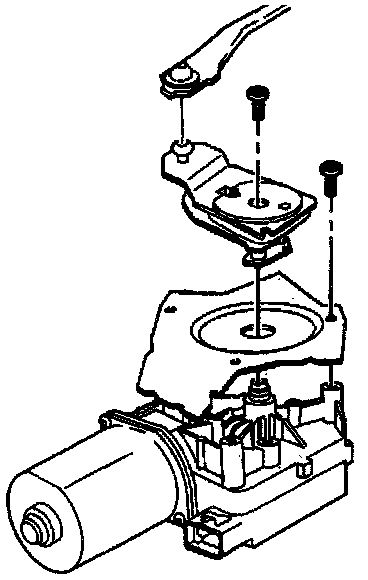

1. Install the wiper motor into the wiper motor module.
2. Install the three torx head screws.

Tighten
Tighten the torx head screws to 10 N.m (89 lb in).

NOTE: Refer to Fastener Notice in General Information.

3. Connect the wiper transmission linkage to the crank arm.
4. Install the wiper motor module into the vehicle.
5. Install the air inlet screen.
6. Install the wiper arm assemblies.

CAUTION: Refer to Battery Disconnect Caution in General information.

7. Connect the negative battery cable.
