Windshield Replacement - Short
Windshield (Short): Removal Procedure:
REMOVAL PROCEDURE
CAUTION:
1. When replacing stationary windows, urethane kit GM P/N 12346284 or equivalent must be used to maintain original installation integrity. Failure to use the urethane kit will result in poor retention of the windshield which may allow unrestrained occupants to be ejected from the vehicle resulting in personal injury.
2. When you are working with any type of glass, use approved safety glasses and gloves to reduce the chance of personal injury.
Tools Required
^ Adhesive Kit GM P/N 12346284 or equivalent
^ J 24402-A Glass Sealant Remover (Cold Knife), or equivalent
^ J 24402-15 Windshield Remover Blade, or equivalent (used with cold Knife)
^ Pneumatic Knife
^ Scraper
^ Plastic Paddle
1. Remove the roof panel.
2. Lower the door windows.
3. Open the hood.
4. Remove the windshield wiper arms and washer hoses.
Windshield (Short): Removal Procedure:

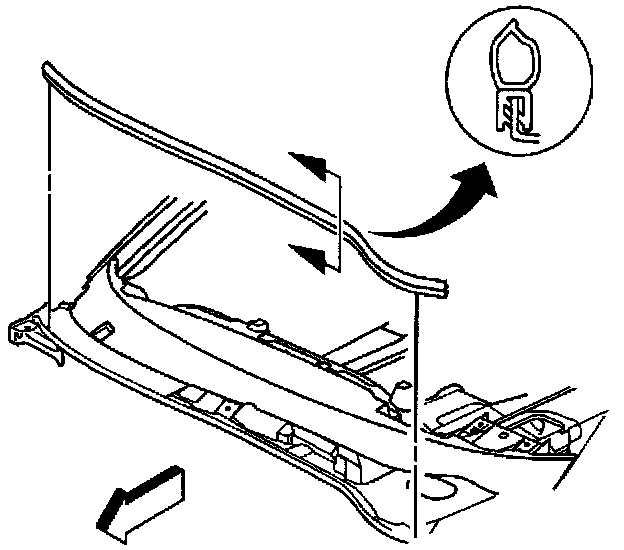

5. Remove the plenum to hood seal. Hood Rear Seal Replacement in Body Front End.
Windshield (Short): Removal Procedure:

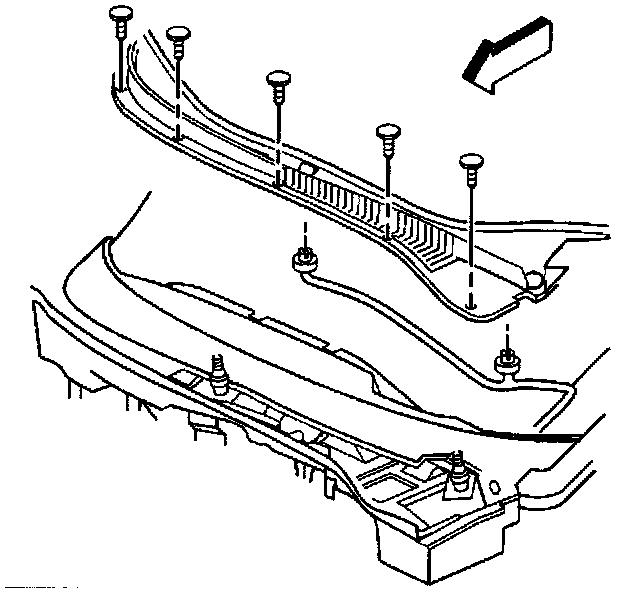

6. Carefully remove the air inlet plenum screen panel.
Windshield (Short): Removal Procedure:

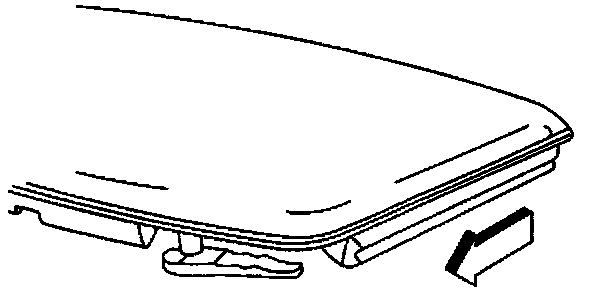

7. Reposition the lower stops away from the windshield.
Windshield (Short): Removal Procedure:
8. Cover the vehicle interior in order to protect from broken glass.
9. Tape over the defogger vent.
10. Remove the inside rearview mirror.
11. Disconnect the antenna lead connection.
Windshield (Short): Removal Procedure:
12. Remove the windshield weatherstrip.
Windshield (Short): Removal Procedure:

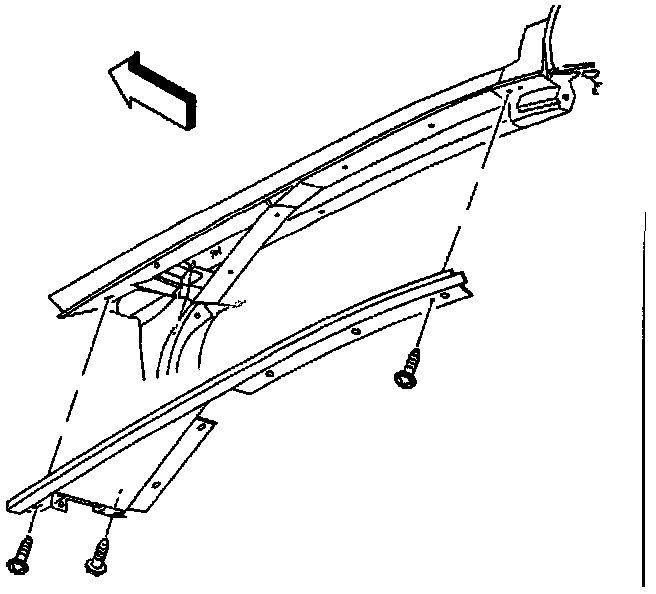

13. Remove the windshield side reveal moldings.
Windshield (Short): Removal Procedure:

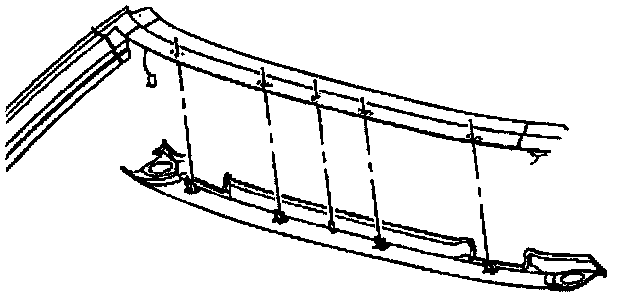

14. Remove the windshield side and upper garnish molding.
Windshield (Short): Removal Procedure:
15. Remove the 4 rear most screws attaching the top of the fender to the wheelhouse.
16. Reposition the fender.
17. Tape or otherwise protect the fender from the cutting tool.
Windshield (Short): Removal Procedure:
IMPORTANT: Do not damage the VIN plate when cutting through the urethane.
18. Cut around the periphery of the windshield.
^ Cut as close to the inside of the windshield as possible.
^ Use a cold knife, a pneumatic knife, or a steel music wire with wooden handles.
^ Leave 6.0 mm (0.25 in) of adhesive on the pinch-weld.
19. Remove the windshield from the body opening.
20. Vacuum the inside and outside of the vehicle including the vents to remove all traces of shattered glass.
21. Remove any old adhesive from a reusable windshield.
Windshield (Short): Installation Procedure:
INSTALLATION PROCEDURE
CAUTION:
^ When replacing stationary windows, urethane kit GM P/N 12346284 or equivalent must be used to maintain original installation integrity. Failure to use the urethane kit will result in poor retention of the windshield which may allow unrestrained occupants to be ejected from the vehicle resulting in personal injury.
^ When you are working with any type of glass, use approved safety glasses and gloves to reduce the chance of personal injury.
1. Inspect the acoustic strip on the dash panel and replace if necessary.
2. Using suction cup holders, position the replacement windshield in the body opening.
3. Carefully inspect the windshield overlap at the body pinch-weld and the retaining flanges all the way around the body opening.
Specifications
Minimum overlap is 5.0 mm (0.19 in).
4. Mark the windshield position at the following locations using tape:
^ The windshield pillars
^ The lower edge
^ The upper edge
5. Cut the tape.
6. Remove the windshield from the body opening.
7. Place the windshield on a protected surface.
8. Thoroughly clean the replacement windshield surface to which urethane is to be applied with an alcohol dampened cloth. Allow the alcohol coated surface to air dry.
9. Apply Clear Glass Prep #1 with a dauber to the edge and inner 100 mm (2 in) of the perimeter of the windshield surface and wipe the surface dry with a clean cloth.
10. Apply Black Glass Primer #2 with a dauber to the edge and inner 100 mm (2 in) of the windshield surface and allow the surface to dry for approximately 6 to 10 minutes.
IMPORTANT:
^ Urethane will not bond to the windshield unless Black Primer #2 has been applied to the windshield.
^ DO NOT apply Black Primer #2 to existing urethane.
Windshield (Short): Installation Procedure:
11. Cut a notch in the side of the caulking tip 4 mm (3/16 in) high and wide.

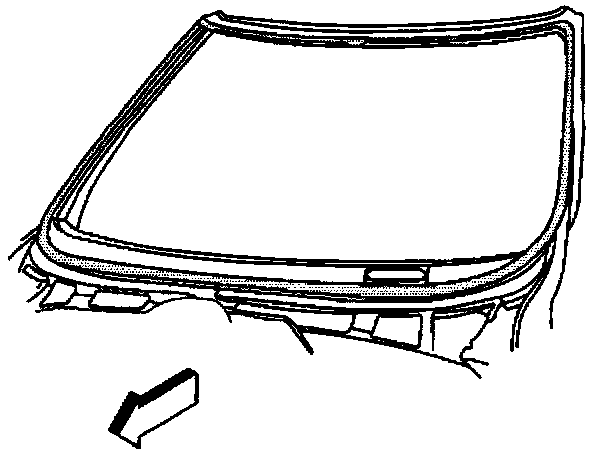

12. Apply the windshield adhesive using a caulking gun:
^ Hold the gun perpendicular to the surface.
^ Apply a smooth continuous 4.0 mm (0.17 in) bead of adhesive directly to the old adhesive in the body opening.
Windshield (Short): Installation Procedure:

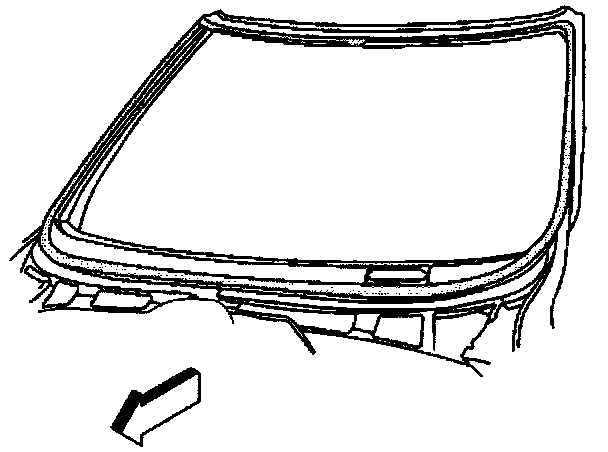

13. Apply a smooth continuous 4.0 mm (0.17 in) bead of adhesive directly to the old adhesive in the body opening.
Windshield (Short): Installation Procedure:
14. Install the windshield:
14.1. Position the windshield in the body opening.
14.2. Hand press around the windshield periphery. Paddle the urethane as needed.
14.3. Tape the windshield into place.
Windshield (Short): Installation Procedure:
15. Adjust the windshield stops.
Windshield (Short): Installation Procedure:

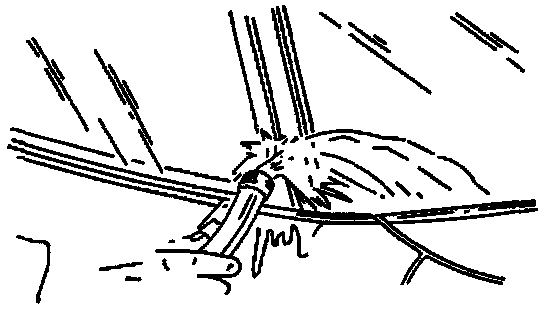

16. Water test the windshield immediately.
^ Use a soft spray.
^ Use warm or hot water to accelerate the cure of the urethane adhesive.
^ DO NOT direct a hard stream of high pressure water at the fresh urethane adhesive.
^ If leaks are found, apply extra urethane at the leak points using a plastic paddle and then retest.
Windshield (Short): Installation Procedure:
17. Install the windshield side reveal moldings.
Windshield (Short): Installation Procedure:
18. Install the windshield weatherstrip.
Windshield (Short): Installation Procedure:
19. Install the air intake plenum screen.
Windshield (Short): Installation Procedure:
20. Install the plenum to hood seal.
21. Install the windshield wiper arms and washer hoses.
Windshield (Short): Installation Procedure:
22. Install the windshield upper garnish molding.
23. Install the mirror.
24. Leave the door windows open.
25. Close the hood.
26. Allow the windshield adhesive to cure.
Windshield (Short): Installation Procedure:
Specifications
^ Minimum Curing time is 6 hours
^ Optimum Curing temperature is 22°C (72°F)
^ DO NOT use Compressed air to cure (dry) the urethane adhesive.
^ DO NOT drive the vehicle until the urethane is cured.
