Adapter Plate

^ Tools Required:
- J 39433 Input Shaft Seal installer
- J 39437 Bushing Installer
- J 42464 Shift Rail Outer Seal Installer
- J 42496 Shift Rail Inner Seal Installer
- Or Equivalent

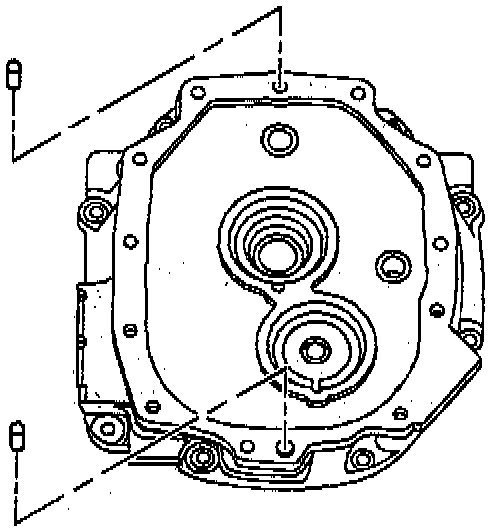

1. Install the dowel pins.

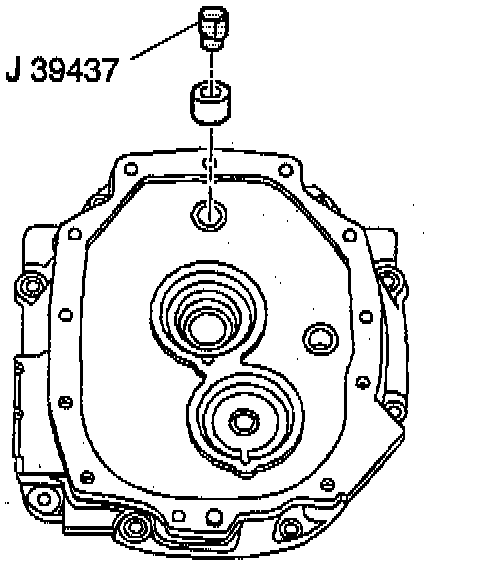

2. Install the 1ST/2ND, 3RD/4TH speed shift shaft bushing. Use the J 39437.
3. Install the inner shift rail seal using J 42496.
4. Install the outer shift rail seal using J 42464.





5. Install the input shaft seal. Use the J 39433.
