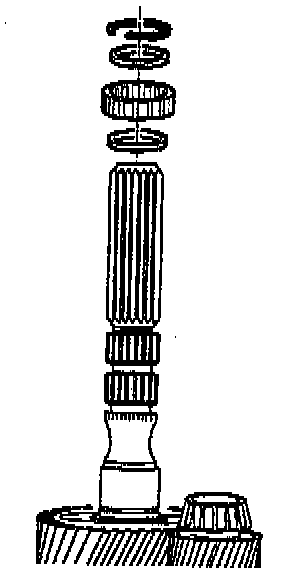

Reverse Speed Gear Removal

1. Remove the following parts:
a. The rear bearing retainer ring
b. The spacer
c. The mainshaft rear roller bearing
d. The spacer

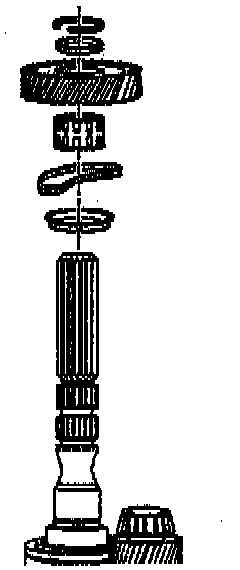

2. Remove the following parts:
a. The retainer ring
b. The reverse gear thrust washer
c. The reverse gear
d. The reverse gear caged needle bearing
e. The wave washer
f. The reverse gear synchronizer blocking ring
