Extension Housing Removal

^ Tools Required:
- J 3289-20 Holding Fixture Bench Mount
- J 39430 Transmission Support Fixture
- Or Equivalent





1. Remove the vent pipe.
2. Install the J 39430.
3. Mount the transmission on a workbench using the J 3289-20.
4. Rotate the transmission into a horizontal position.
5. Remove the transmission drain plug and drain the transmission fluid.
6. Shift the transmission into neutral (N).

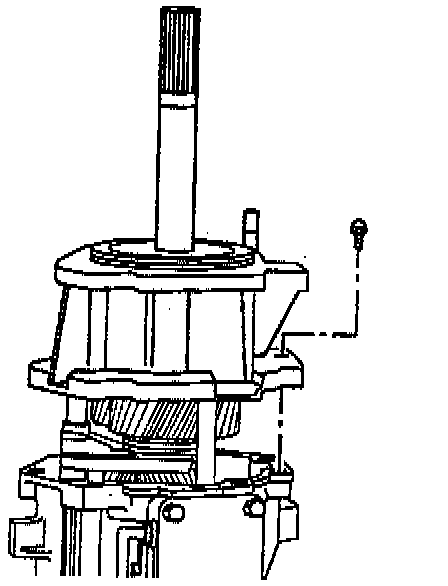

7. Remove the rear extension housing bolts and the rear extension housing.
