Pilot Bearing: Service and Repair

REMOVAL PROCEDURE

NOTICE: DO NOT use grease under pressure to force the pilot bearing from the crankshaft or engine damage may result.

^ Tools Required:
- J 23907 Clutch Pilot Bearing Remover

1. Remove the clutch pressure plate and clutch driven plate.

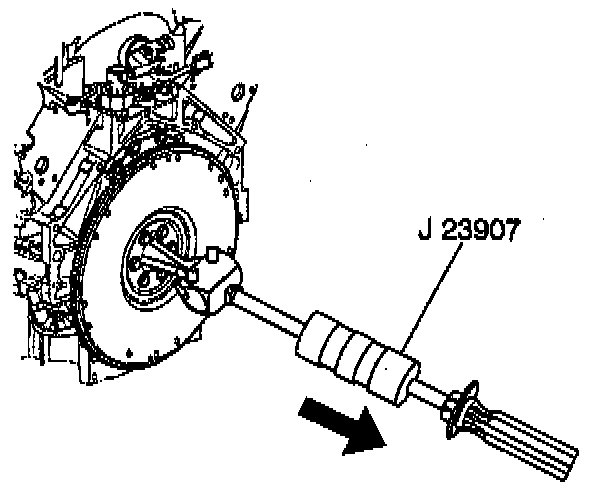

2. Using the J 23907, remove the clutch pilot bearing.

INSTALLATION PROCEDURE

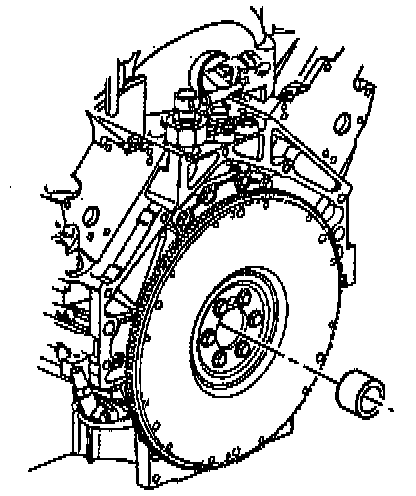

1. Using a suitable size socket, install the clutch pilot bearing.





2. Install the clutch pressure plate and clutch driven plate.
