Removal Procedure

CAUTION: Disconnect the negative battery cable under the following circumstances:
- When installing an electrical unit.
- When a tool or equipment could easily come into contact with "live" exposed electrical terminals.
Failure to disconnect the negative battery terminal may result in personal injury or damage to the vehicle's components. Turn OFF the vehicle ignition, unless instructed otherwise.

1. Disconnect the negative battery cable.
2. Remove the LH I/P lower insulator panel.





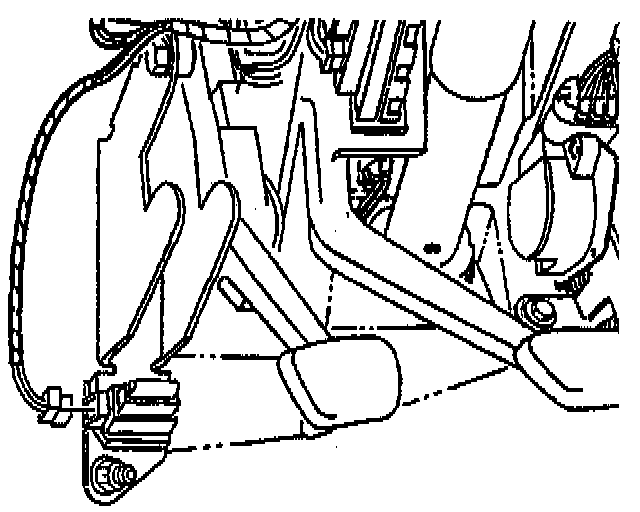

3. Disconnect the clutch anticipate switch electrical connector.





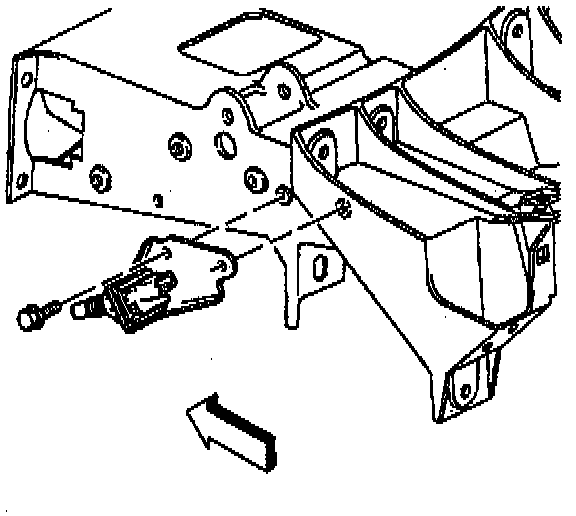

4. Remove the clutch anticipate switch bracket retaining bolts.
5. Remove the clutch anticipate switch (with bracket).





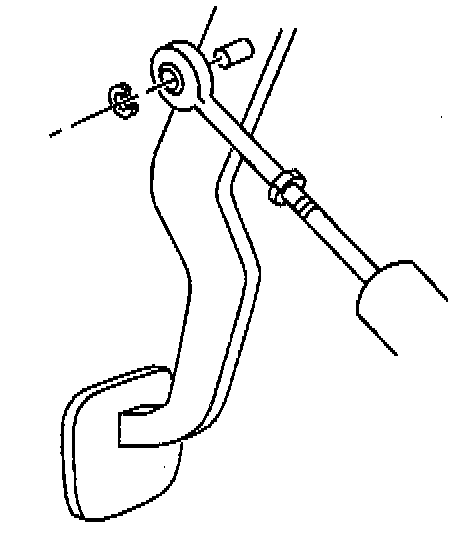

6. Remove the clutch master cylinder rod retainer.
7. Disconnect the clutch master cylinder rod from the clutch pedal.
8. Raise and suitably support the vehicle.





9. Remove the clutch actuator cylinder hose from the hose retaining clip.
10. Lower the vehicle (leave the vehicle on the hoist).
11. Remove the windshield washer solvent container.

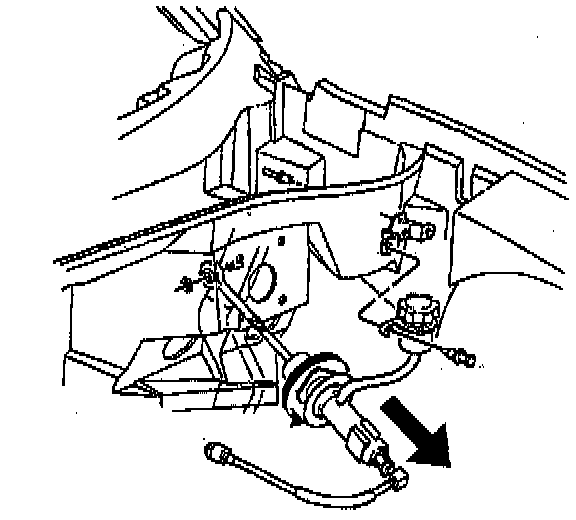

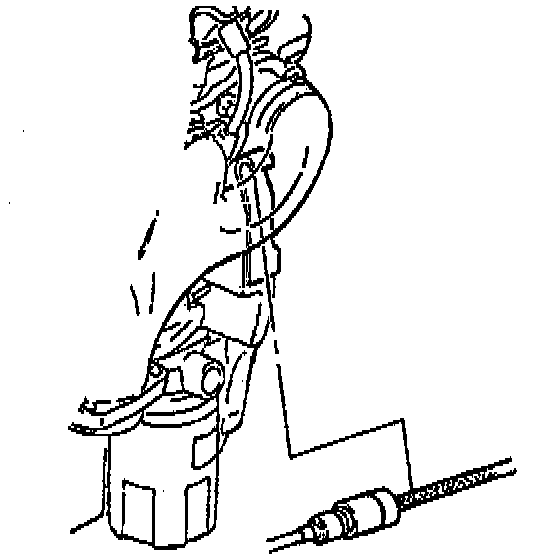

12. Rotate the clutch master cylinder counterclockwise 45°.
13. Release the clutch master cylinder from the dash panel.





14. Move the clutch master cylinder away from the dash panel approximately 25 mm (1 inch).

Important: Prior to disassembly take note of the direction of the clutch pedal return spring and its relationship to the clutch pedal.

15. Pull up on the clutch pedal to release the pedal return spring.
16. Finesse the spring from the clutch pedal bracket.





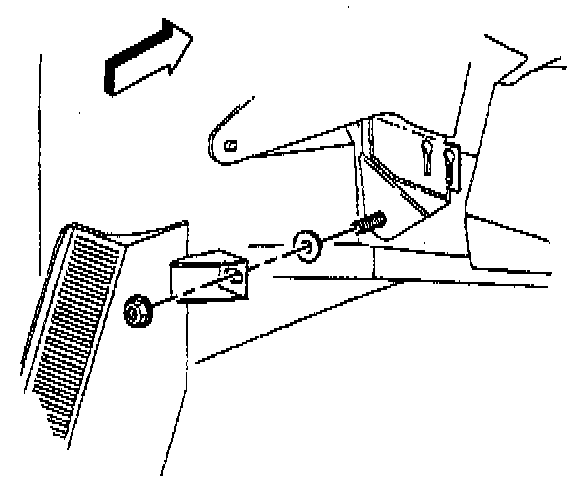

17. Remove the driver foot rest bracket retaining bolt.
18. Remove the driver foot rest bracket retaining nut.
19. Remove the driver foot rest bracket from the vehicle.
20. Remove the driver foot rest spacer from the dash panel stud.





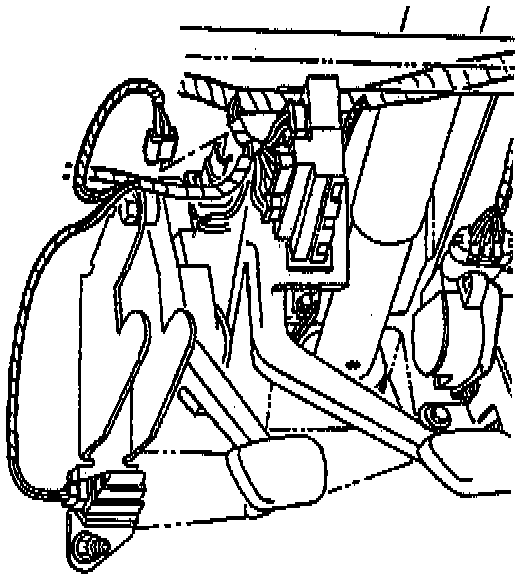

21. Disconnect the clutch pedal position switch (clutch start switch) electrical connector.





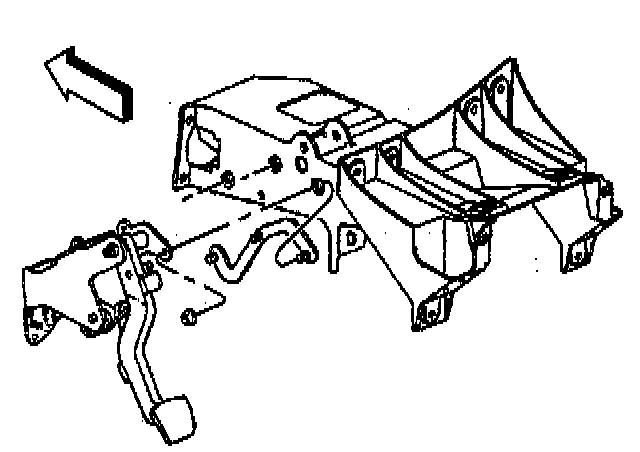

22. Remove the clutch pedal bracket mounting nuts.
23. Remove the clutch pedal bracket stud anchor plate.
24. Remove the clutch pedal and bracket assembly from the vehicle.





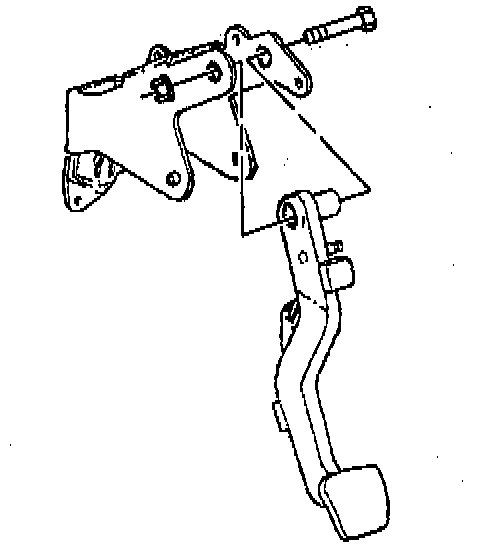

25. Remove the clutch pedal bolt.
26. Remove the clutch pedal nut.
27. Remove the clutch pedal from the clutch pedal bracket.
