Damper/Tuned Absorber Replacement

REMOVAL PROCEDURE
1. Raise and suitably support the vehicle.
2. Remove the LH rear tire and wheel assembly.

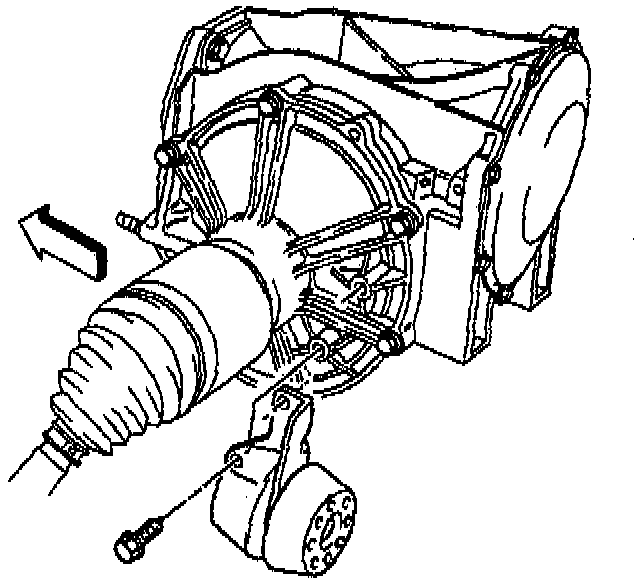

3. Remove the damper/tuned absorber mounting bolts.
4. Remove the damper/tuned absorber.

INSTALLATION PROCEDURE
1. Install the damper/tuned absorber to the differential.
2. Install the damper/tuned absorber mounting bolts.
- Tighten the damper/tuned absorber mounting bolts to 25 Nm (18 ft. lbs.).

NOTICE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

3. Install the LH rear tire and wheel assembly.
4. Lower the vehicle.
