Control and Shift Solenoids Replacement

REMOVAL PROCEDURE
1. Raise and suitably support the vehicle.
2. Remove the transmission oil pan and filter.

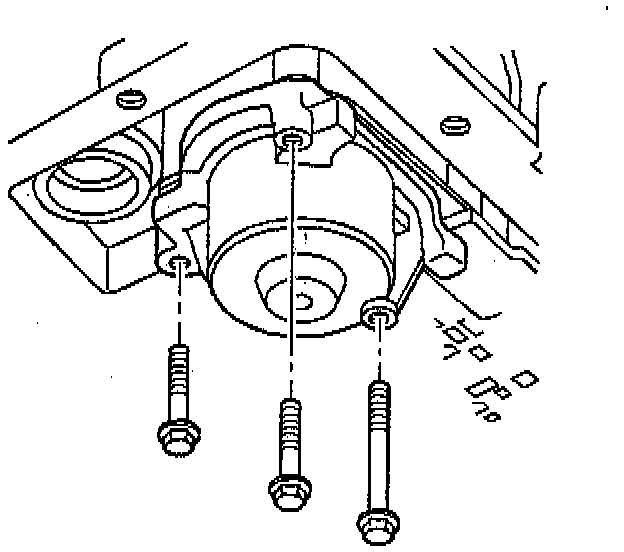

3. Remove the accumulator cover bolts.
4. Remove the 1-2 accumulator cover.
5. Remove the 1-2 accumulator piston.





6. Remove the 1-2 accumulator inner and outer springs.
7. Disconnect the component electrical connectors.

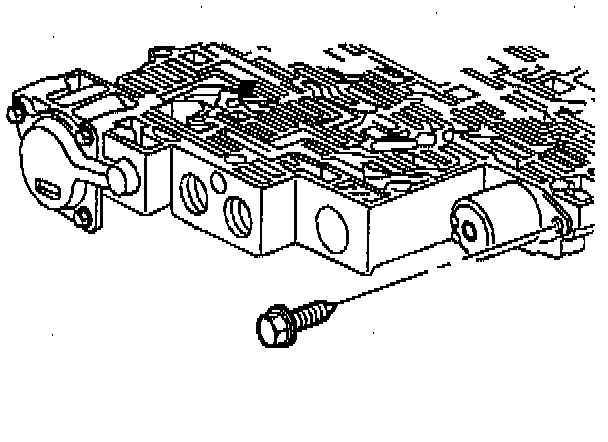

8. Remove the pressure control solenoid retainer bolt.

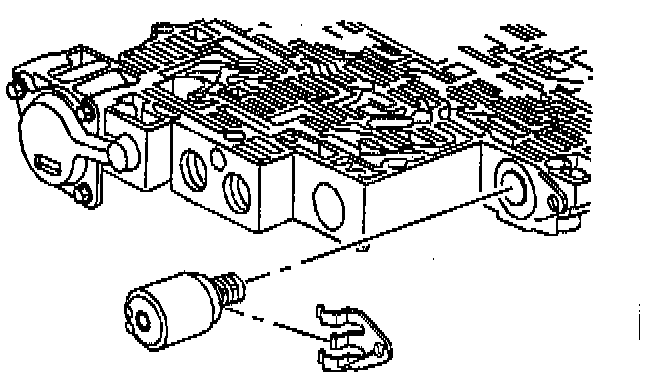

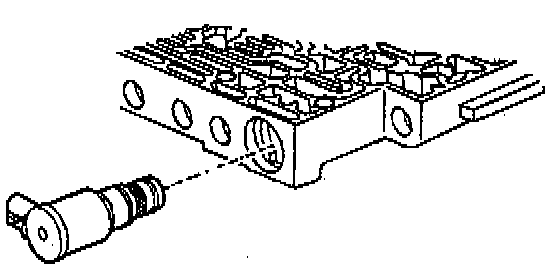

9. Remove the pressure control solenoid retainer and the pressure control solenoid.

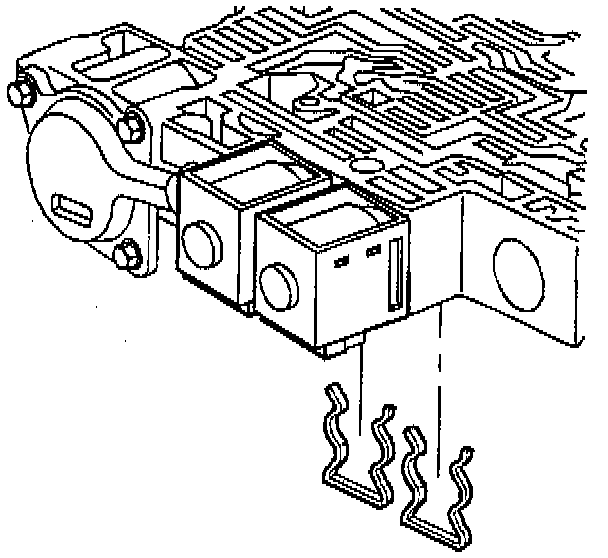

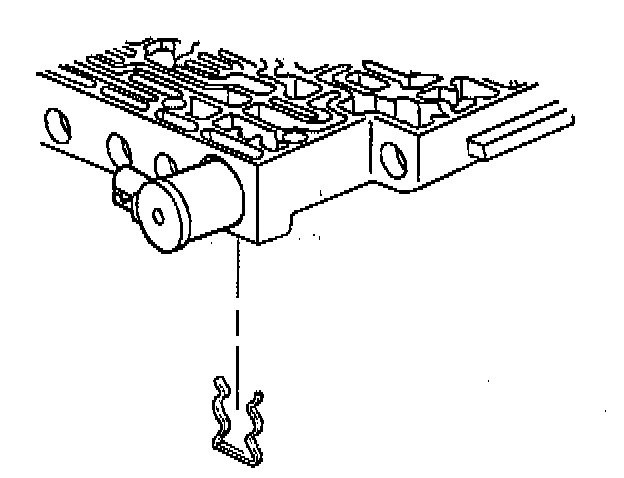

10. Remove the shift solenoid retainers.

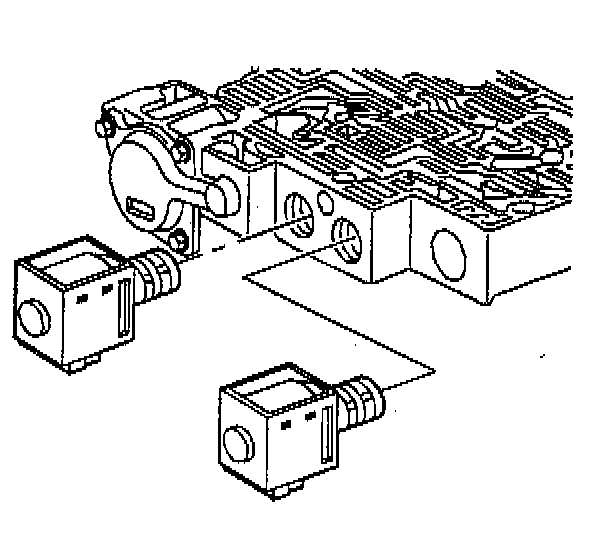

11. Remove the shift solenoids.

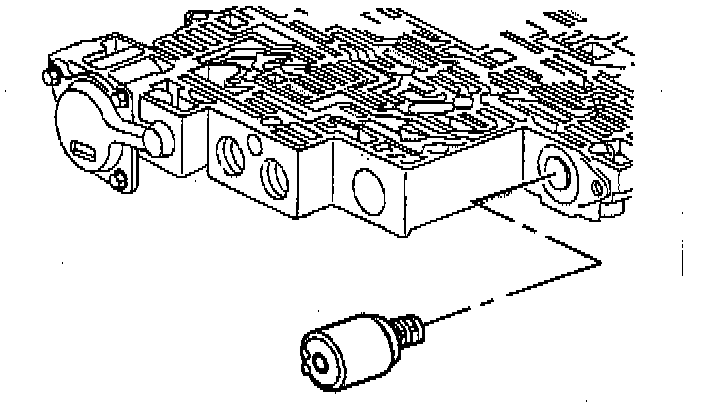

12. Remove the 3-2 control solenoid retainer.





13. Remove the 3-2 control solenoid.

INSTALLATION PROCEDURE
1. Install the 3-2 control solenoid.
2. Install the 3-2 control solenoid retainer.
3. Install the shift solenoids.
4. Install the shift solenoid retainers.





5. Install the pressure control solenoid. Ensure that the electrical tabs are facing outboard.
6. Install the pressure control solenoid retainer.
7. Install the pressure control solenoid retaining bolt.
- Tighten the pressure control solenoid retaining bolt to 11 Nm (97 inch lbs.).

NOTICE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

8. Connect the component electrical connectors.

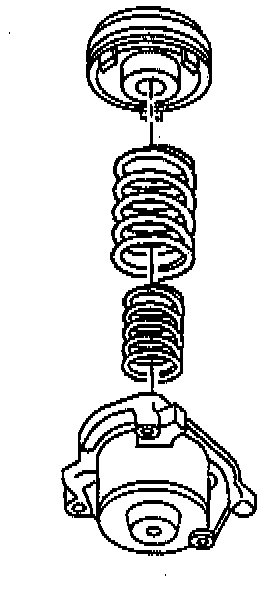

9. Install the 1-2 accumulator inner and outer springs to the piston.
10. Install the 1-2 accumulator piston (with springs) to the accumulator cover. Ensure that the piston legs face toward the accumulator cover.
11. Install the 1-2 accumulator cover and bolts.
- Tighten the 1-2 accumulator cover bolts to 11 Nm (97 inch lbs.).
12. Install the transmission oil pan and filter.
13. Lower the vehicle.
