Stabilizer Shaft Replacement

Removal Procedure

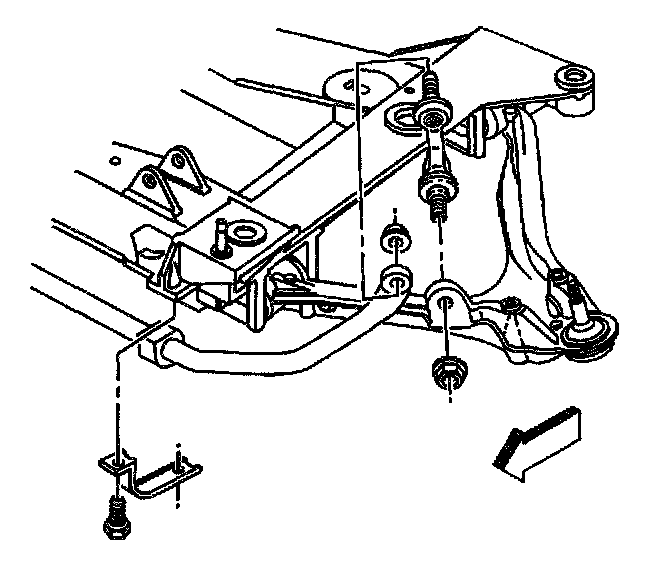

1. Raise and support the vehicle.
2. Remove the tire and wheel assemblies.
3. Remove the stabilizer shaft link nuts.
4. Remove the stabilizer shaft link from the stabilizer shaft and lower control arm.
5. Remove the stabilizer shaft insulator clamps from the front crossmember.
6. Remove the stabilizer shaft from the vehicle.

Installation Procedure
1. Install the stabilizer shaft and insulator clamps and bolts onto the crossmember.
2. Install the stabilizer shaft link into the stabilizer shaft and lower control arm.
3. Install the stabilizer shaft link nuts.
- Tighten the stabilizer shaft link nuts to 75 Nm (55 ft. lbs.).
- Tighten the stabilizer shaft insulator clamp bolts to 54 Nm (40 ft. lbs.).

Notice: Always use the correct fastener In the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion Inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and system

4. Install the tire and wheel assemblies.
5. Lower the vehicle.
